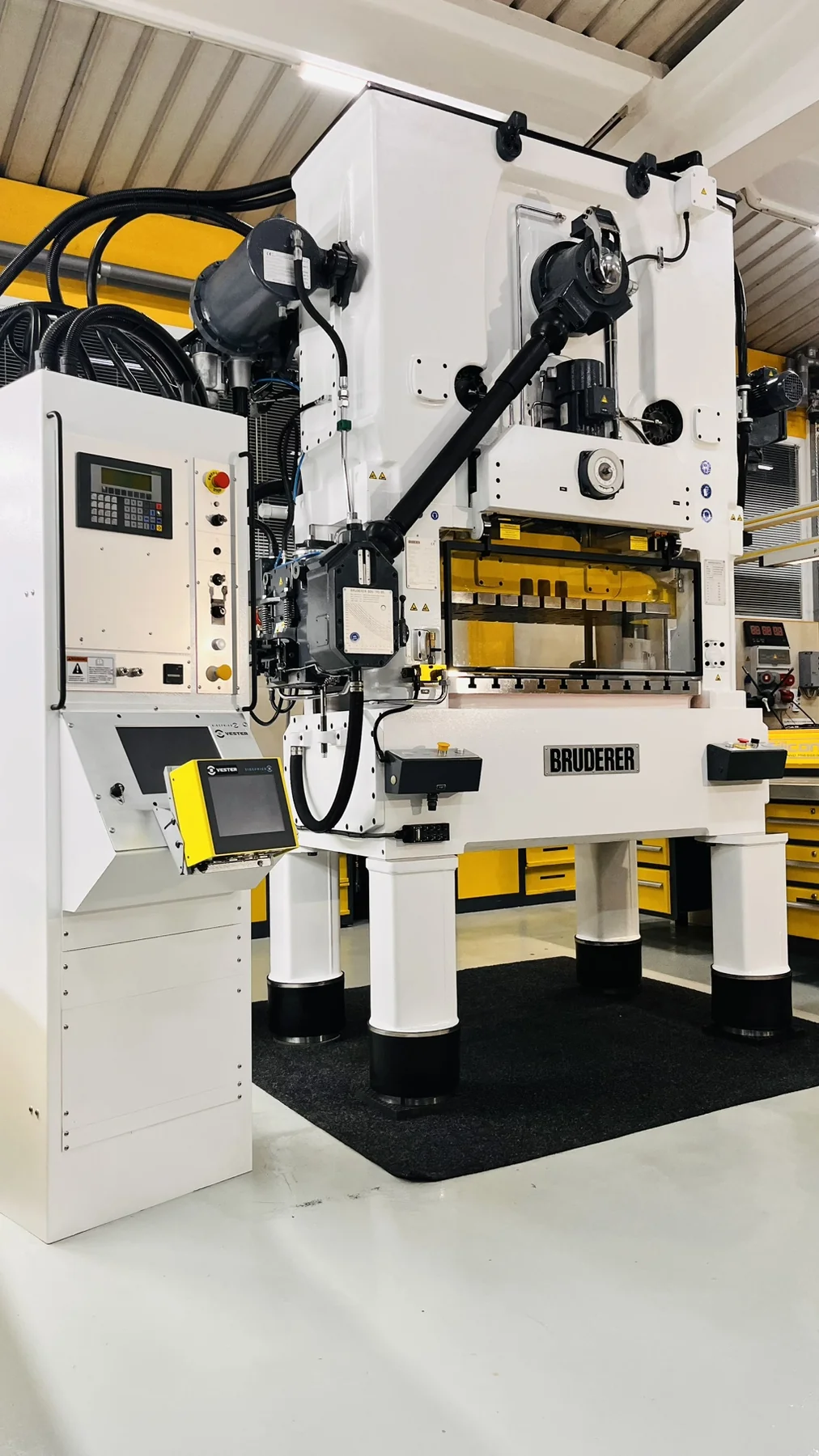

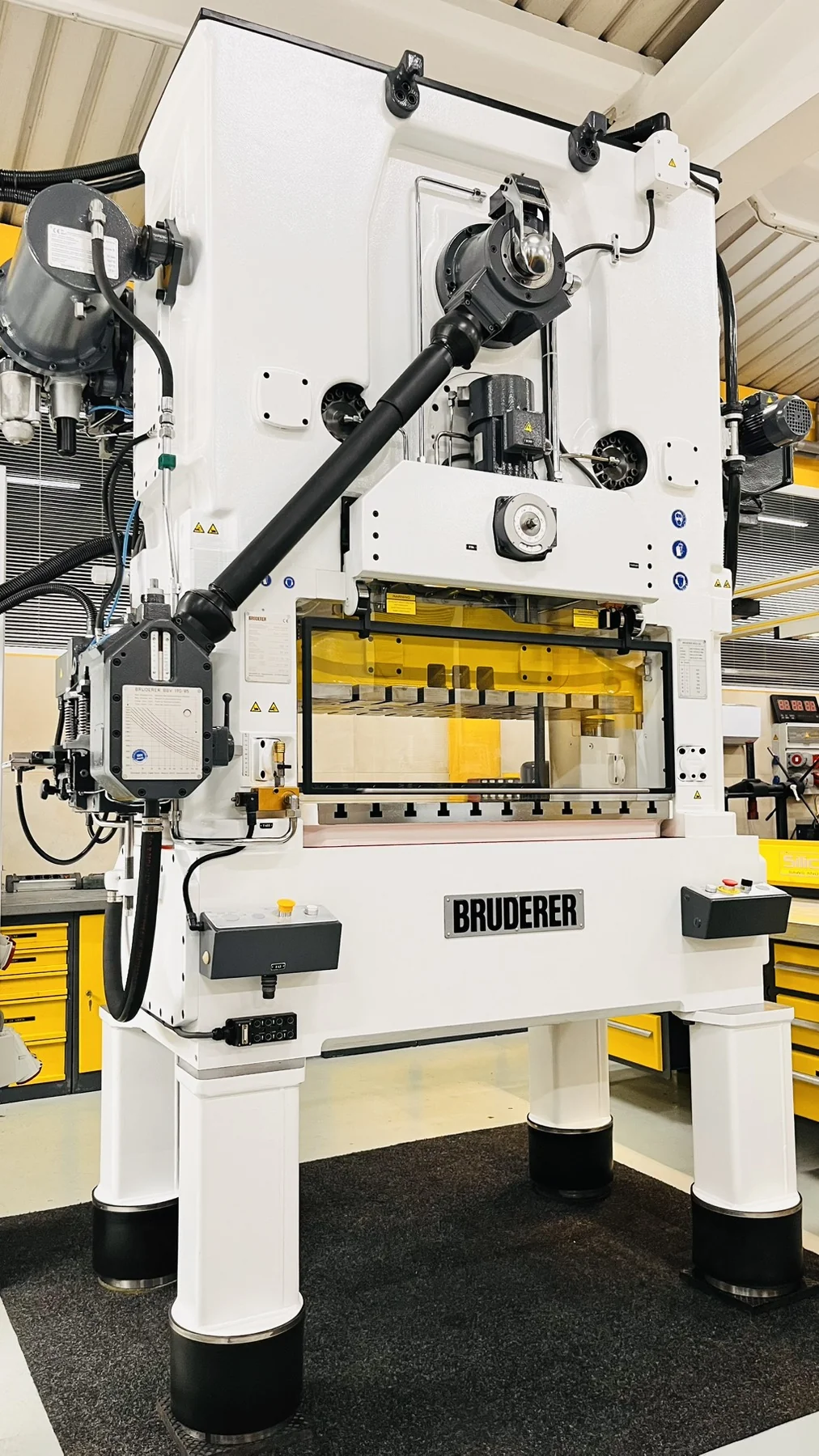

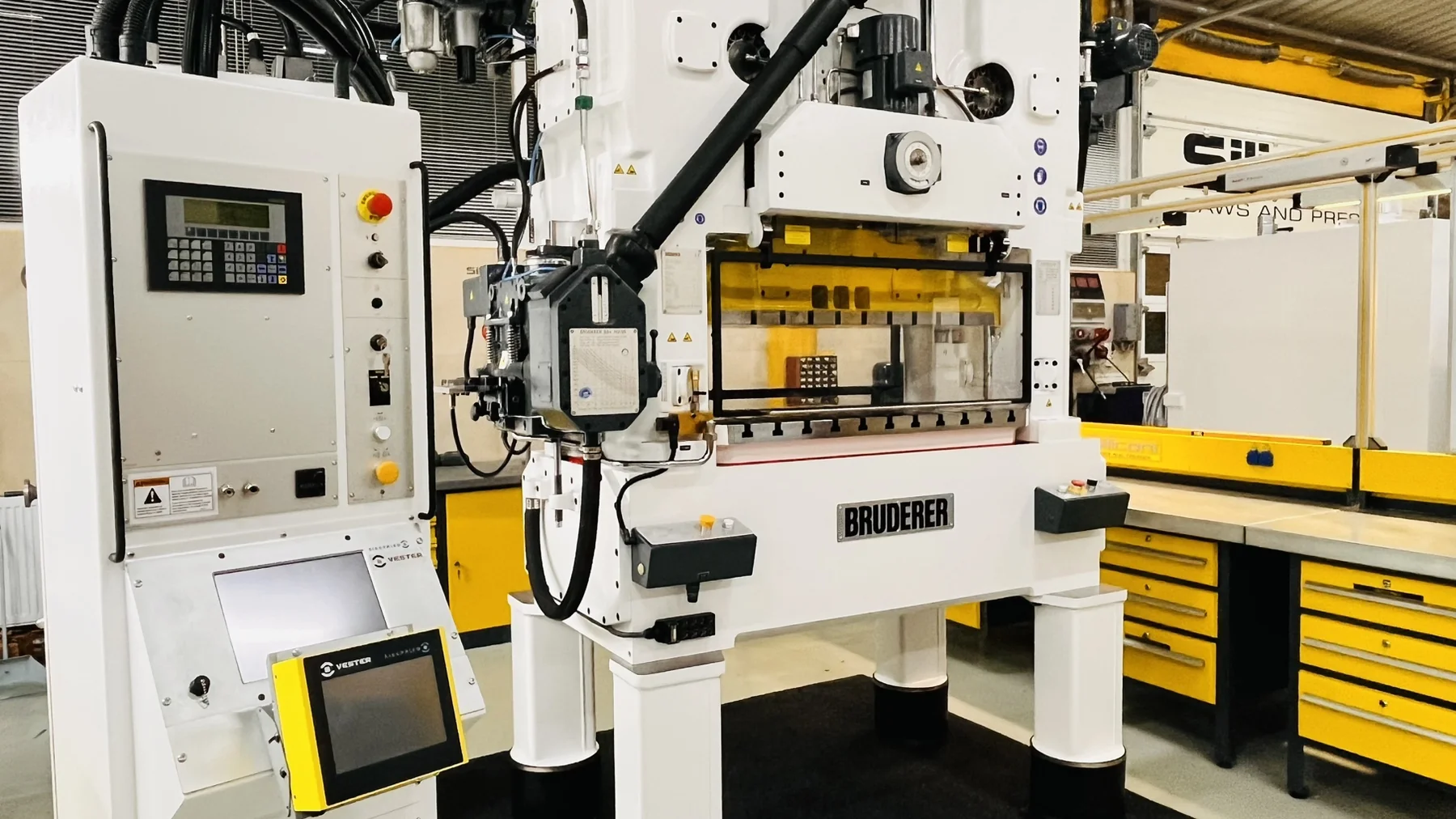

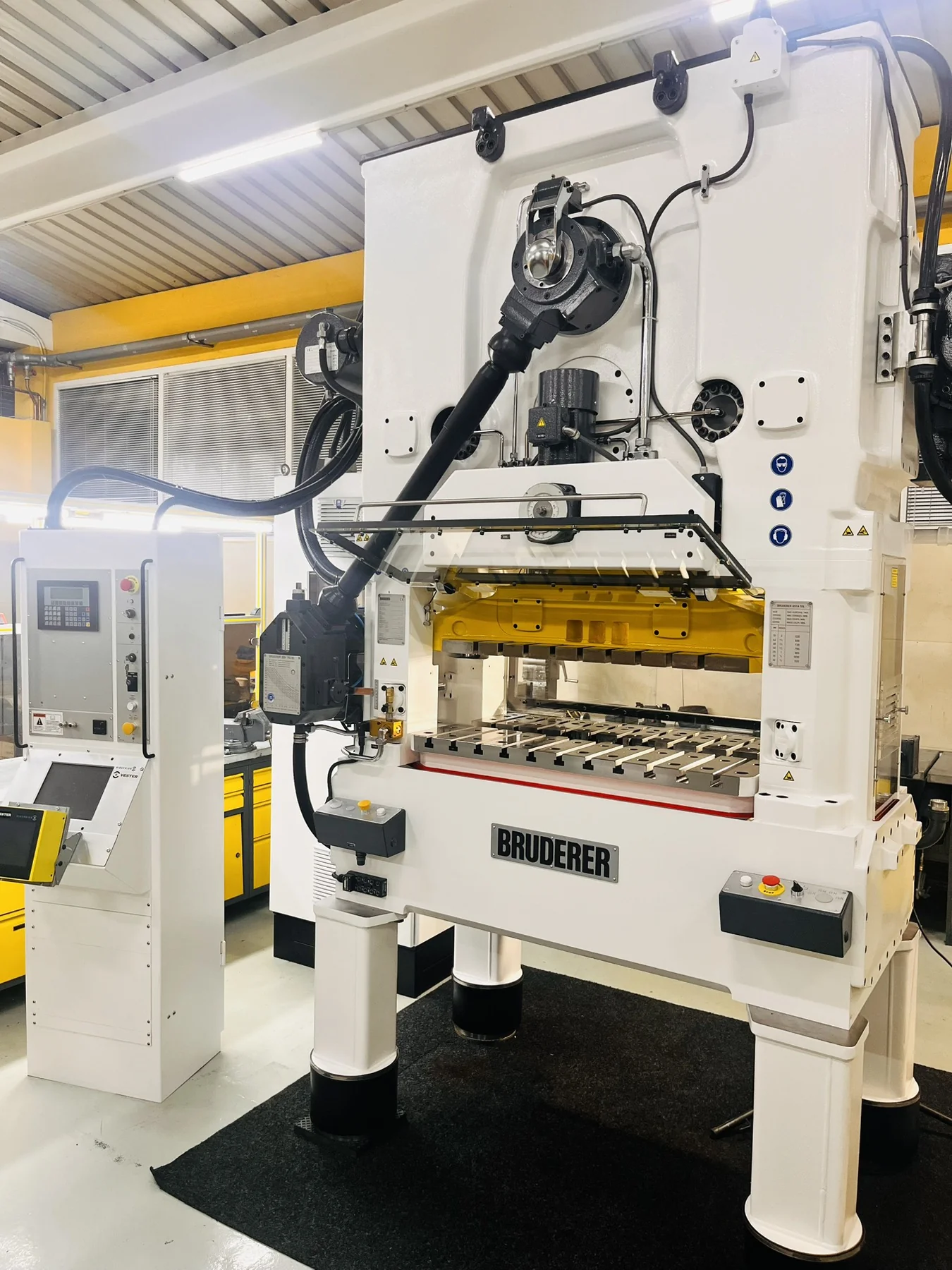

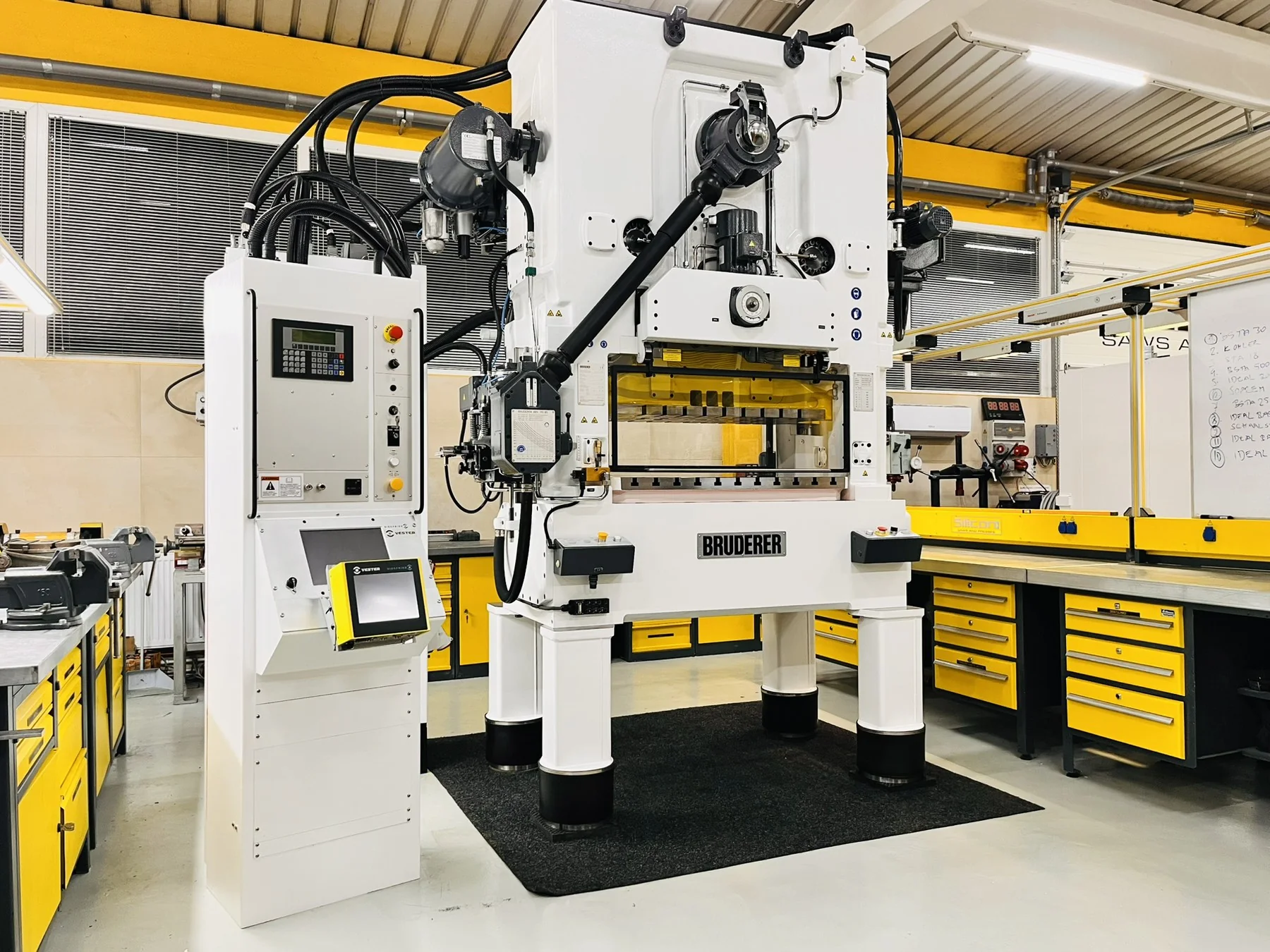

Bruderer BSTA 50 USL
High Speed Automatic Stamping Press • 1995 • ID: 30225
Technische Daten
Nominal force500 kN (50 T)
Table area1080 × 650 mm
Stroke rate100–1120 strokes per minute

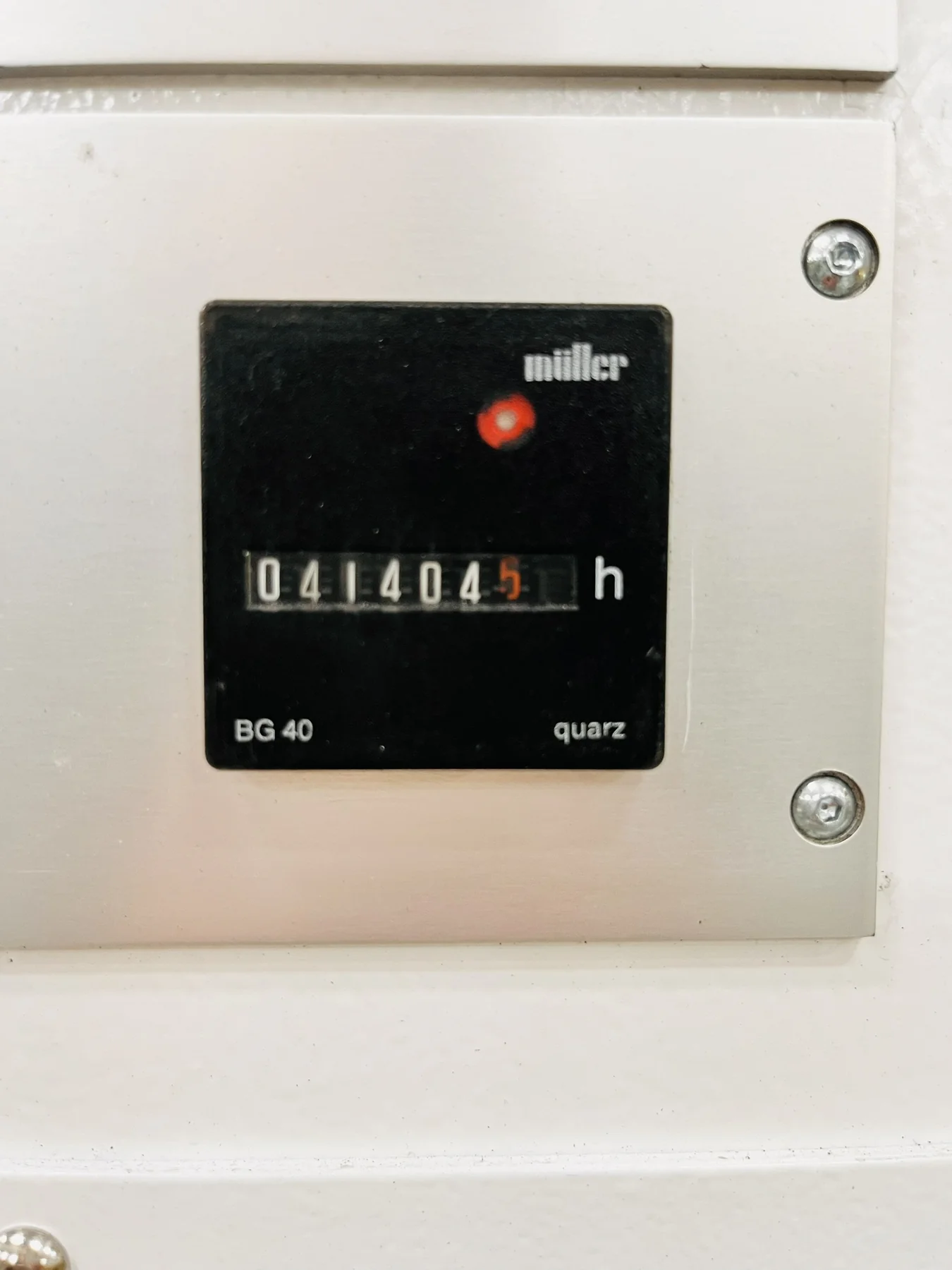

Working hours41000 h
Year1995
Reconditioned Year2025
Main motor:22 kW
Control voltage:24V DC
Power connection:400V / 50Hz / 62 kVA
Adjustable stroke:16 / 19 / 25 / 32 / 38 /44 / 51 mm
Shut height adjustment:64 mm
Max tool installation width:1100 mm
Strip pass width:up to 256 mm

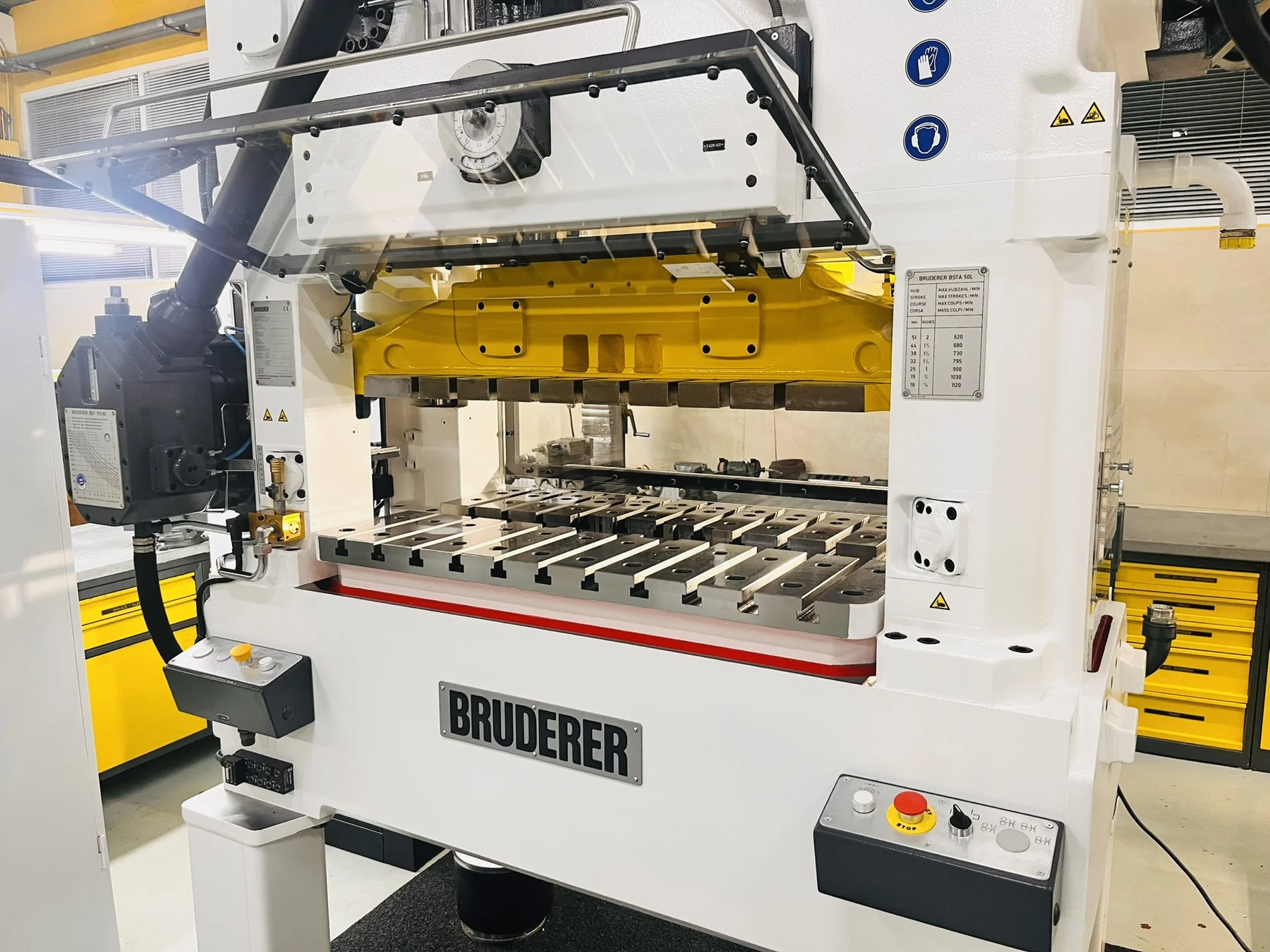

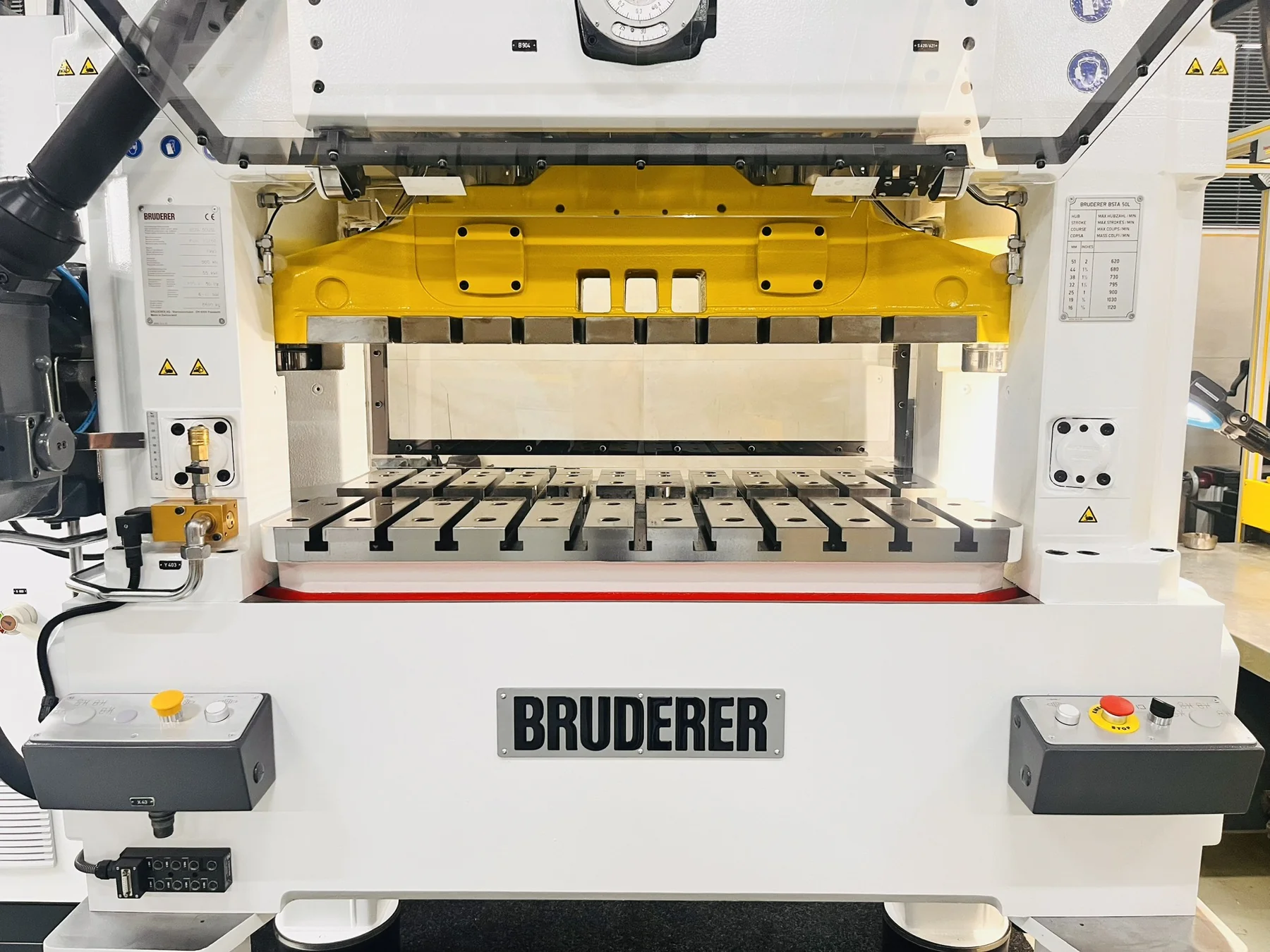

Ram area:980 × 420 mm

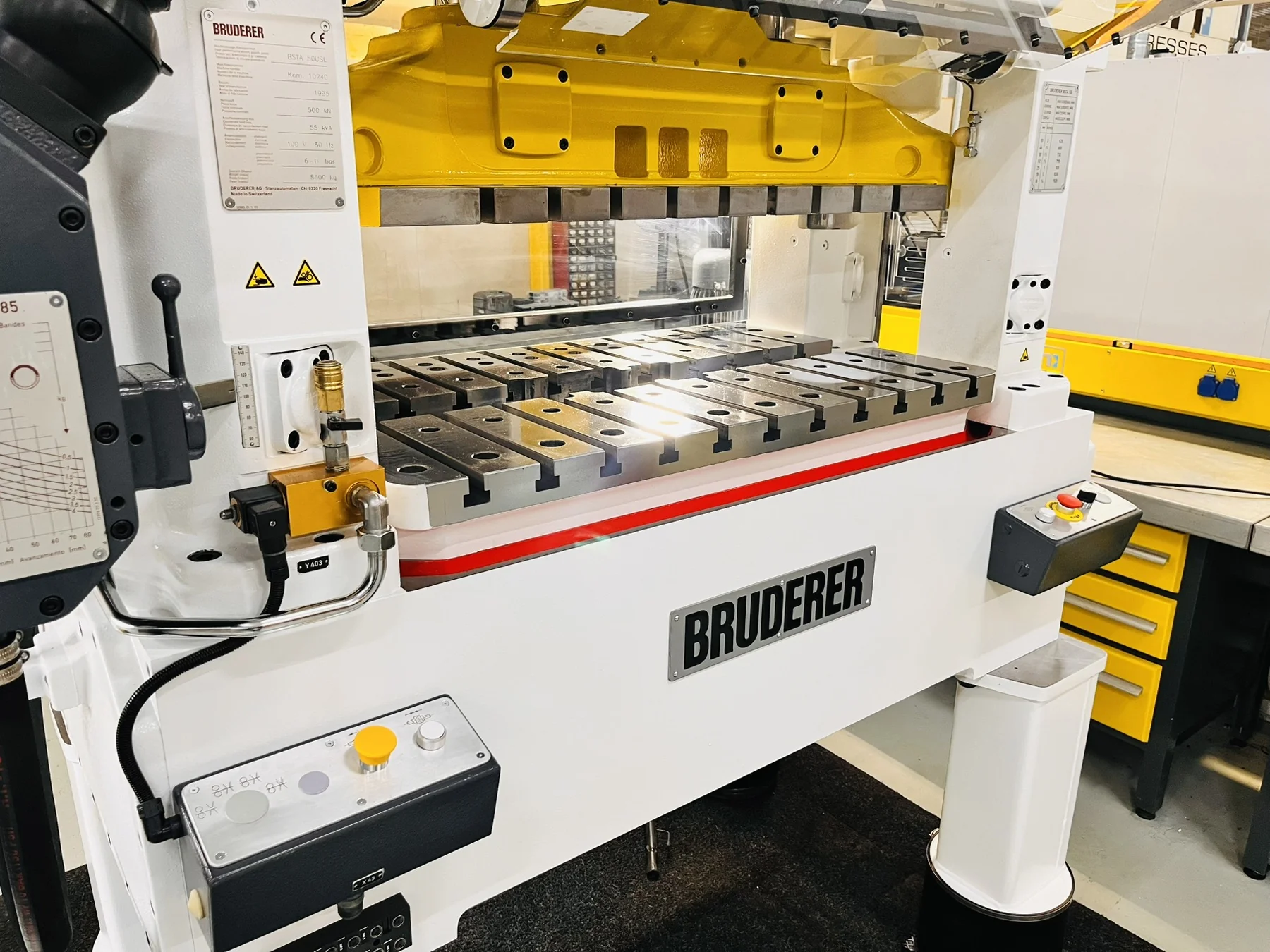

Table area:1080 × 650 mm
Strip entry height adjustable:60–140 mm
Max strip width:120 mm
Max feeding pitch:85 mm
Max material thickness:4 mm
Feeding angle:180 Deg
Machine Dimensions (with BBV 190)(L × W × H):2407 × 1278 × 3150 mm
Weight (approx.):8,000 kg

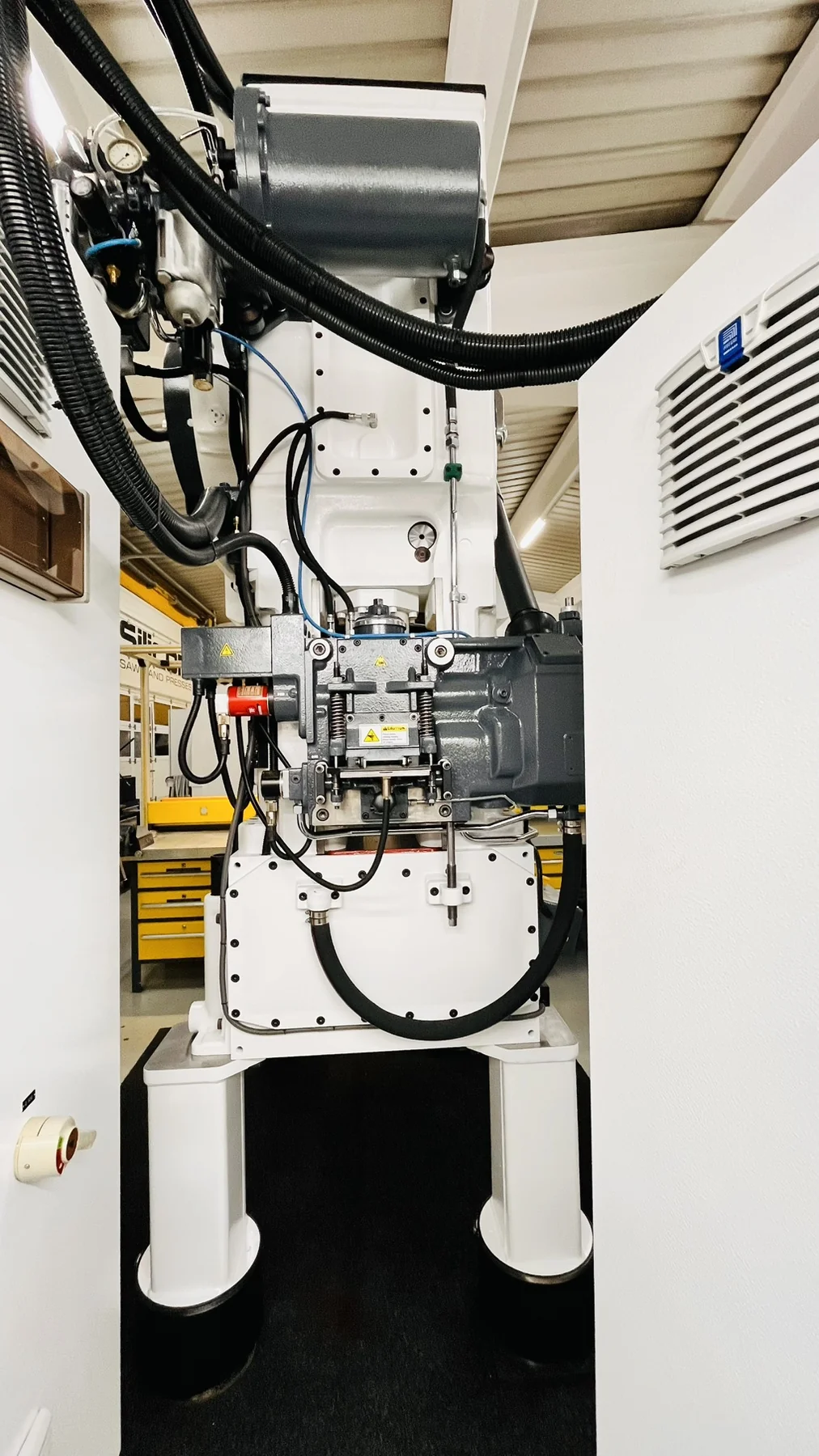

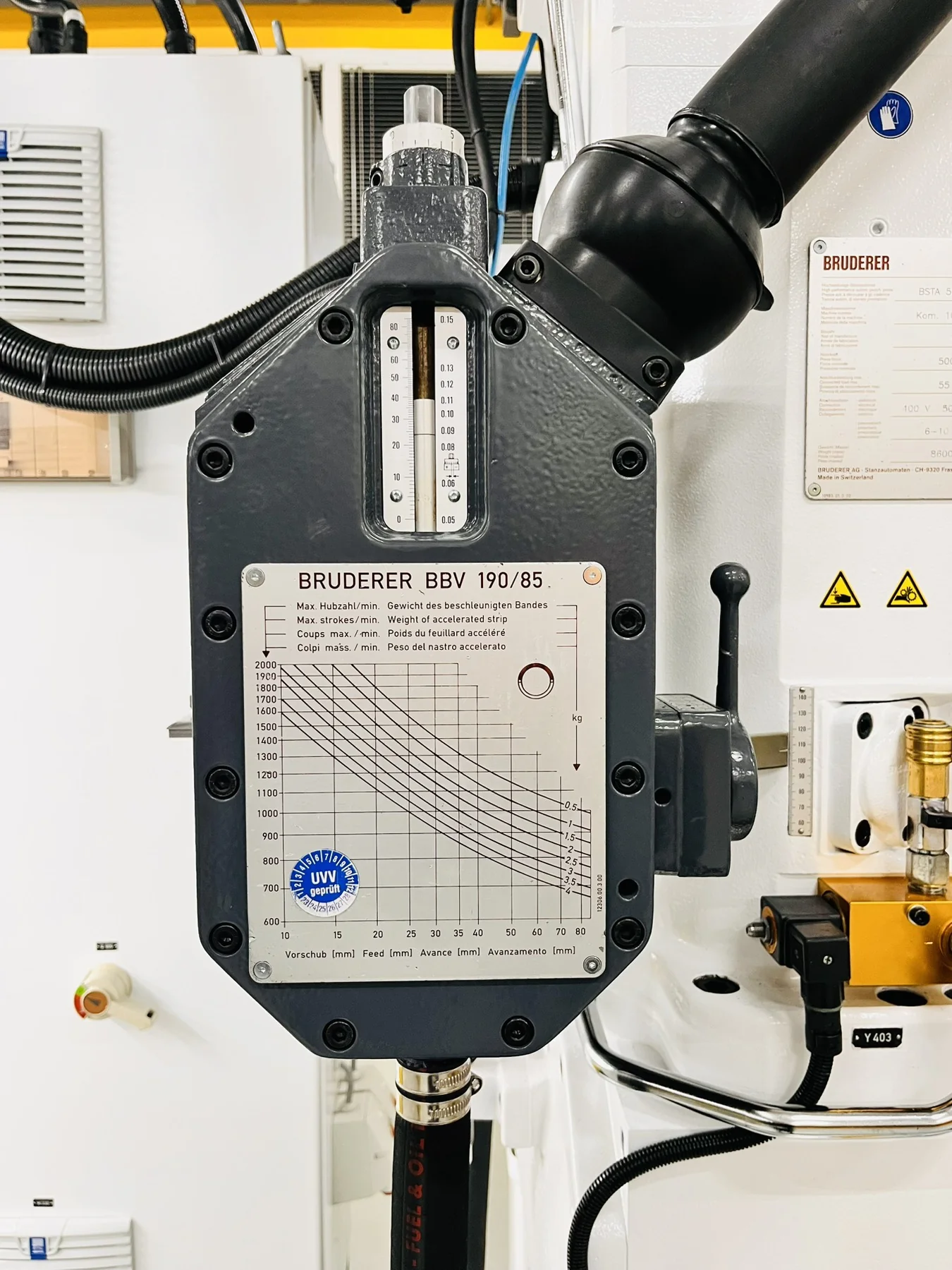

Feeder BBV 190 – fully synchronized mechanical strip feeder system

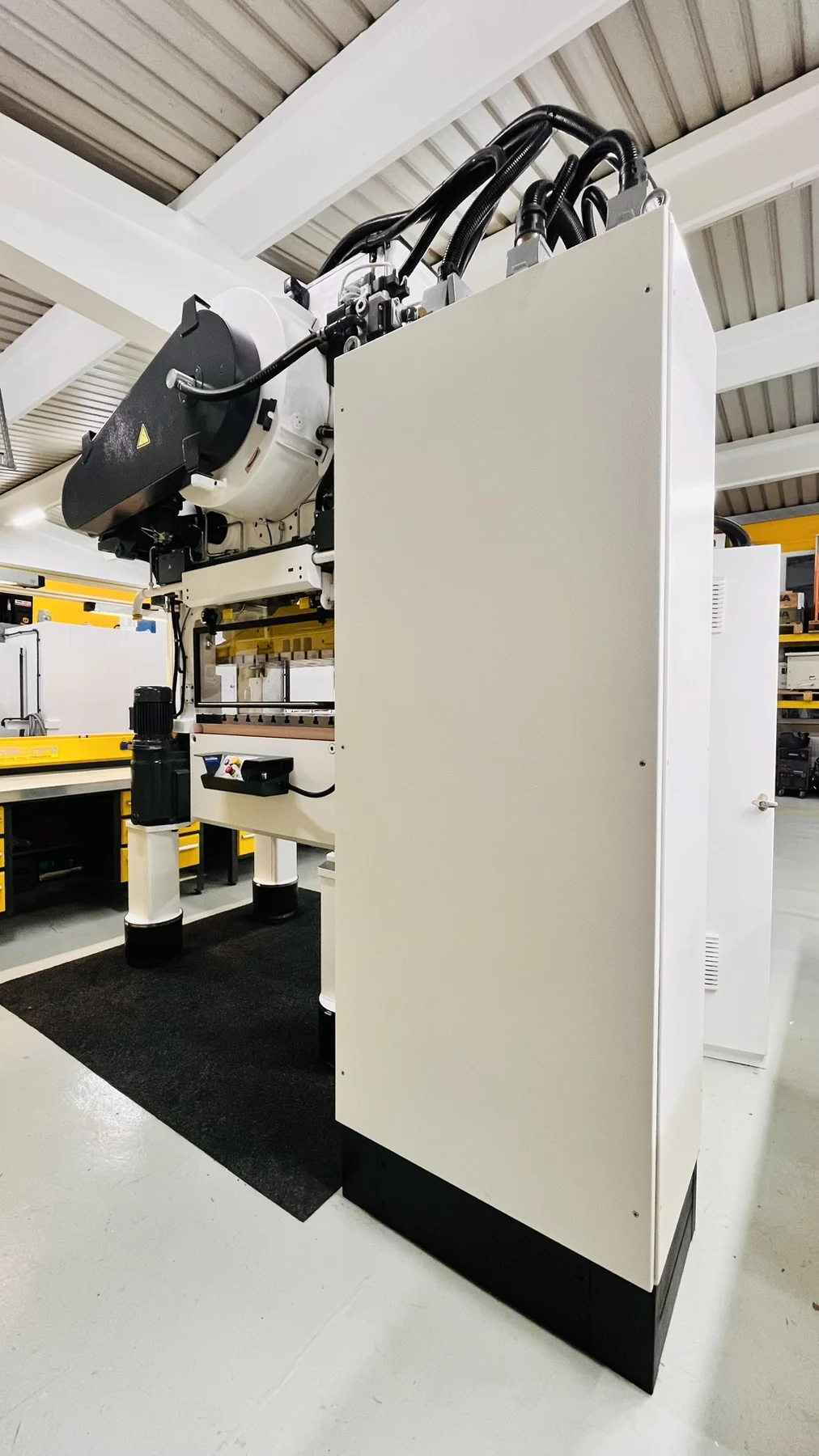

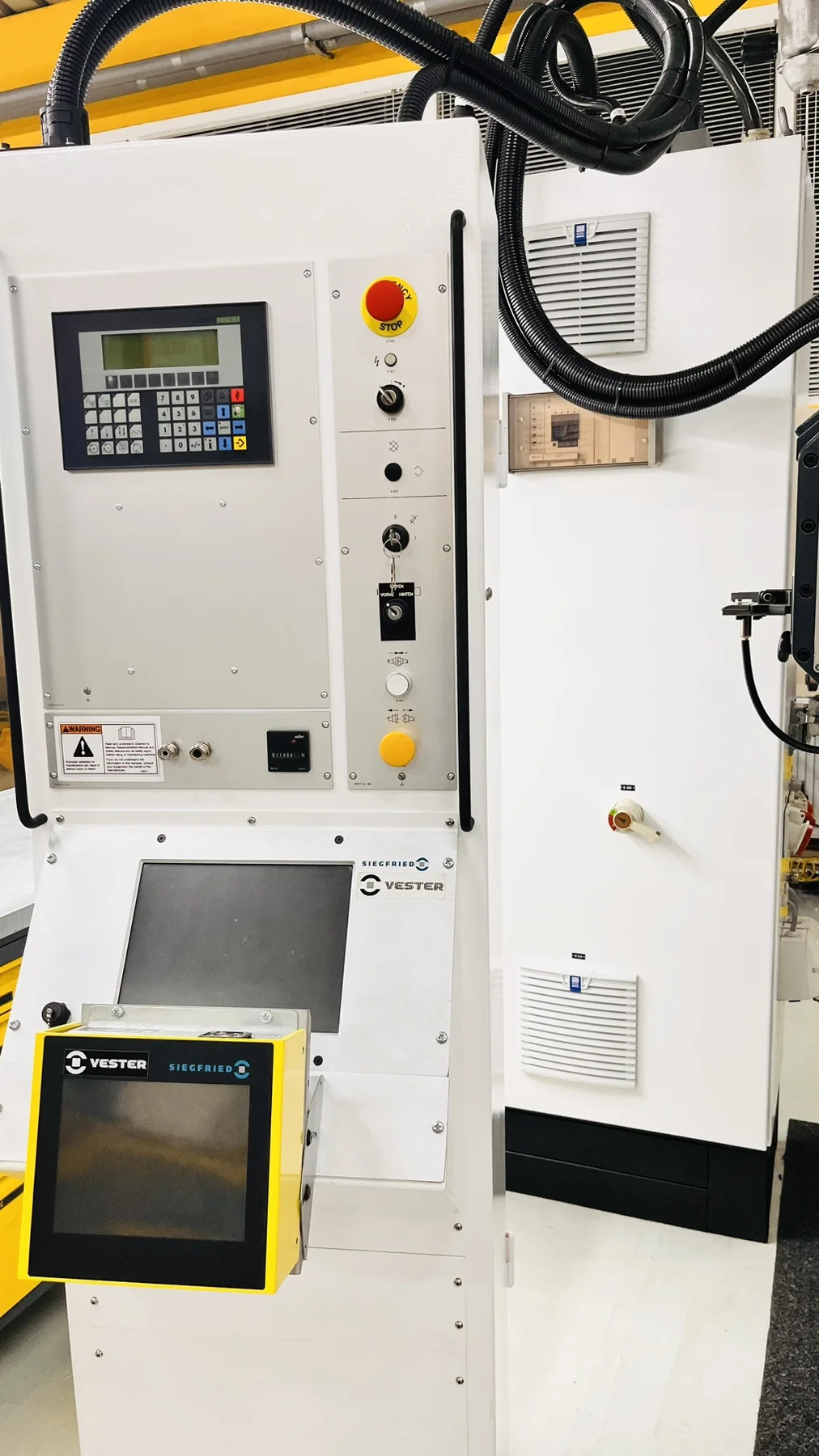

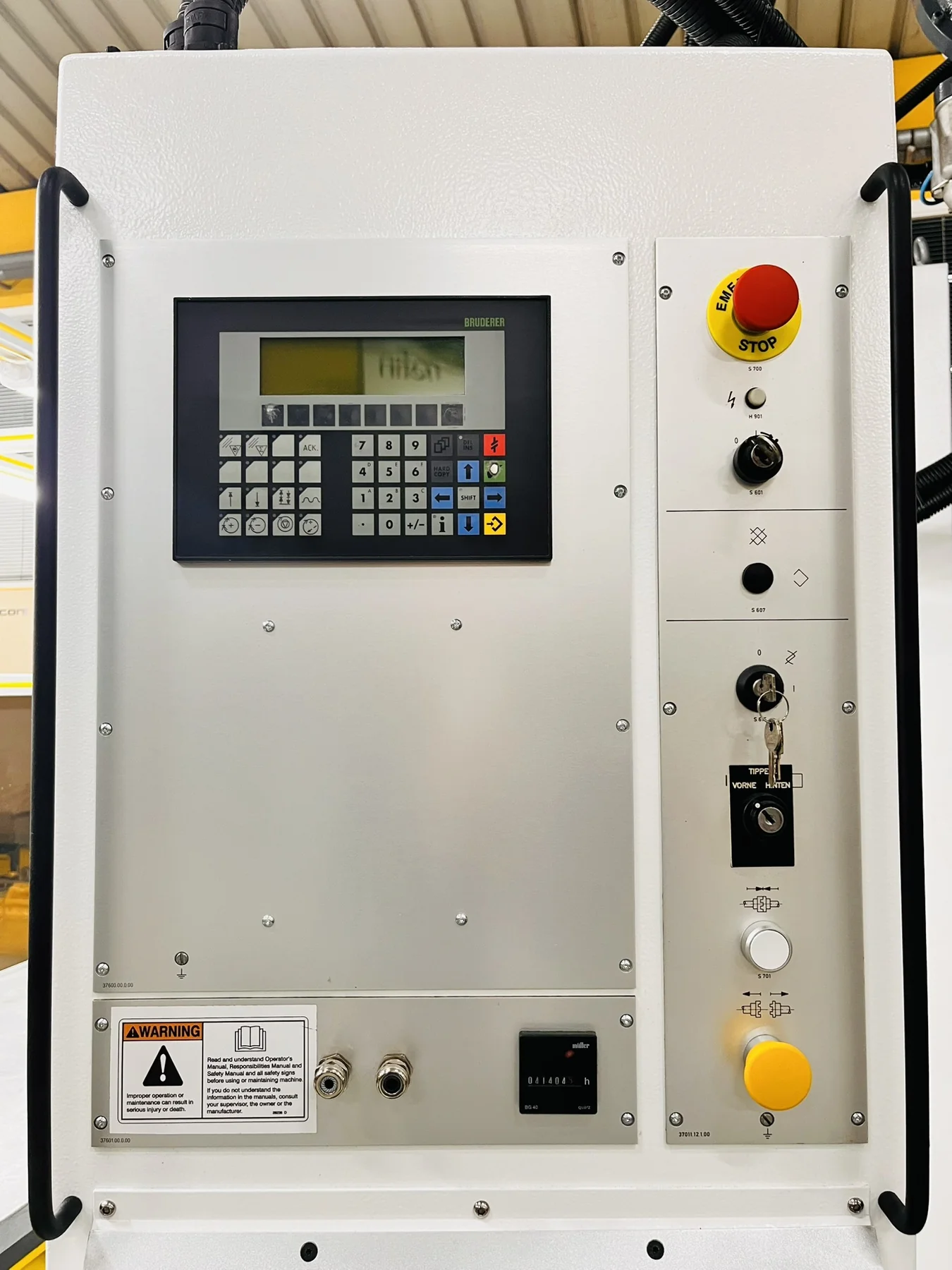

Integrated control cabinet
Pneumatic clutch and brake
Adjustable stroke and shut height
Compressed air connection: 6–10 bar
Oil cooling unit included
Ready for integration with peripheral systems
CE Certificate
Machine in excellent technical and visual condition
Fully serviced and tested
Immediate availability from Europe
Worldwide shipping available
