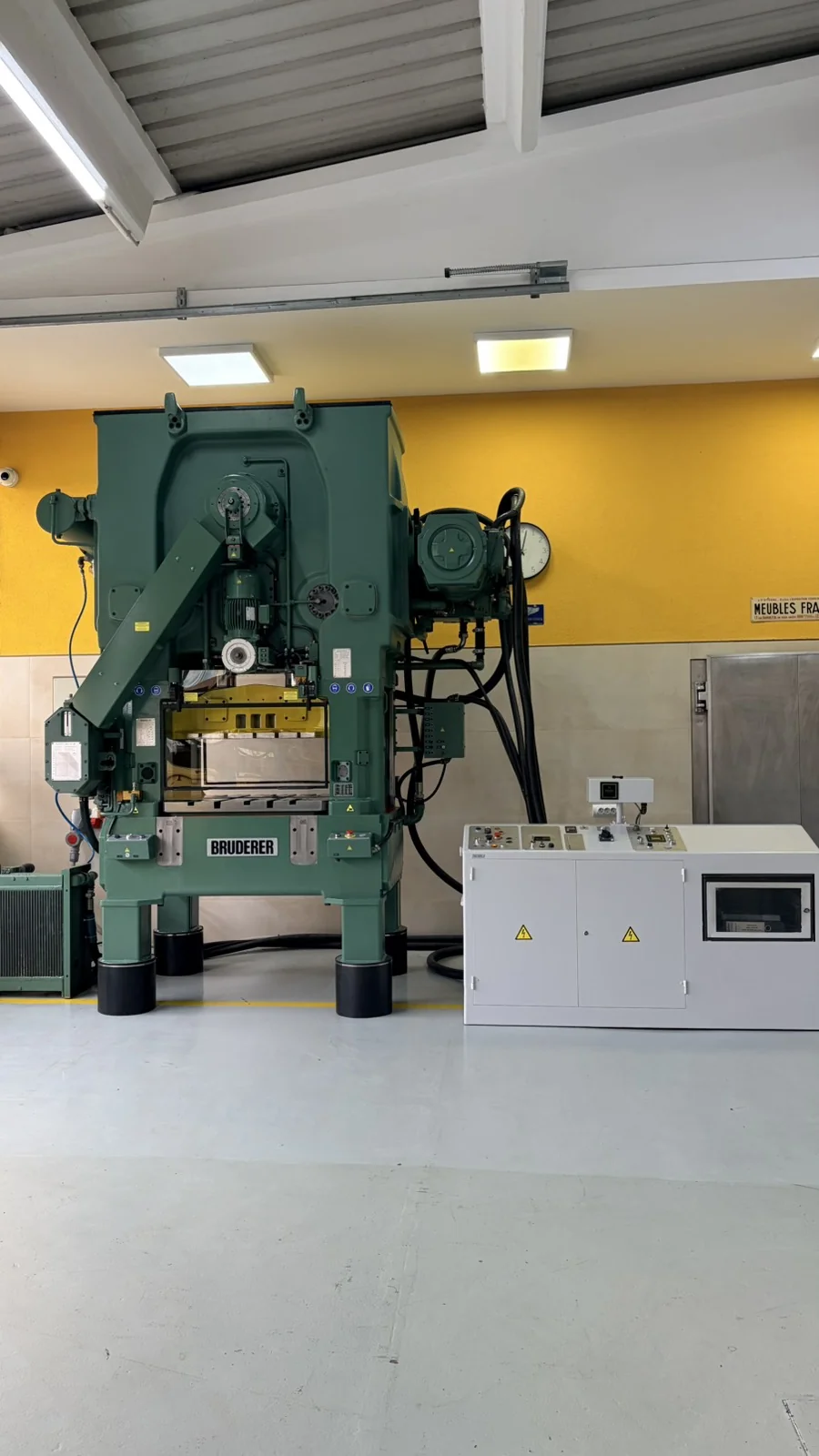

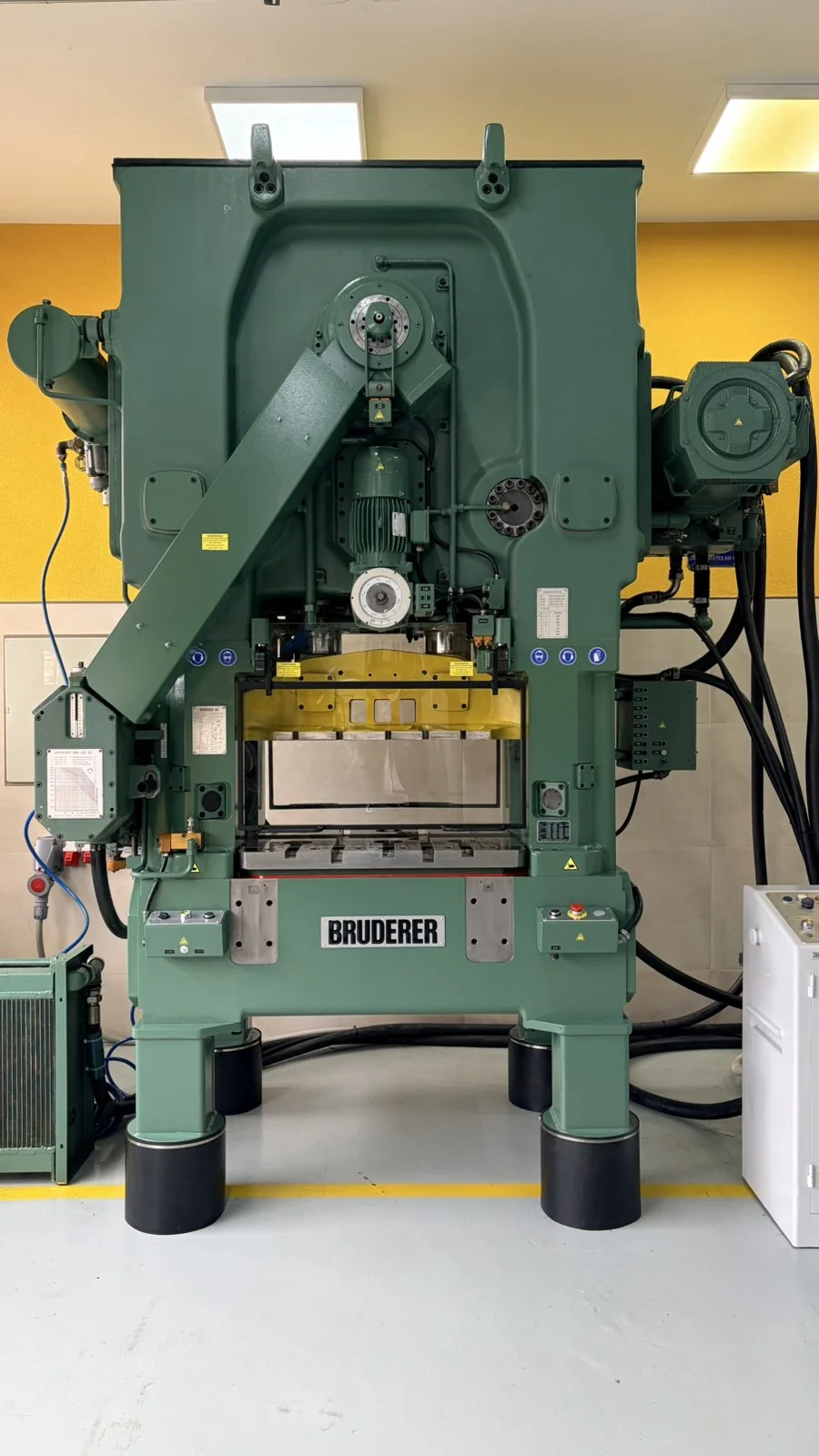

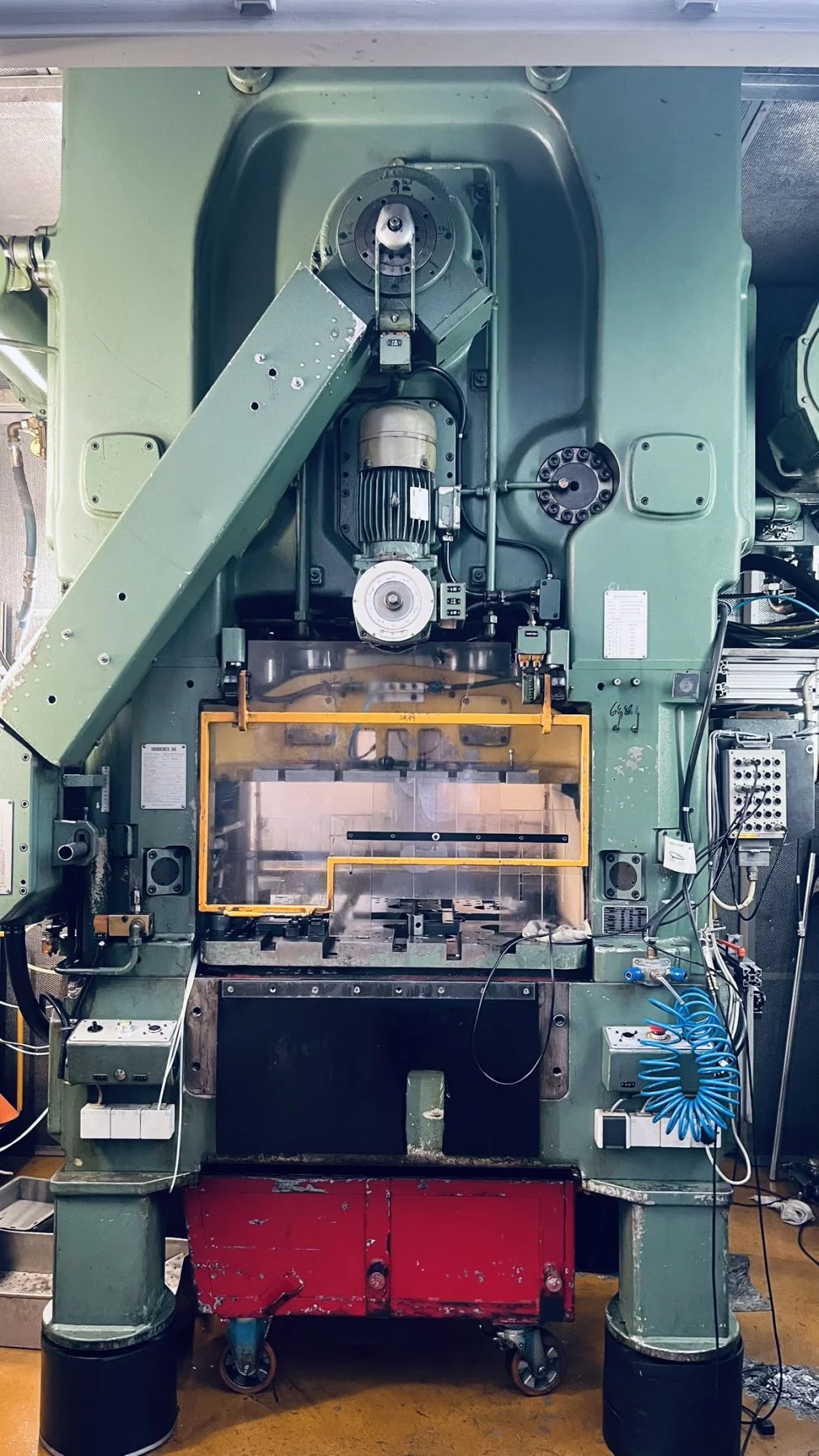

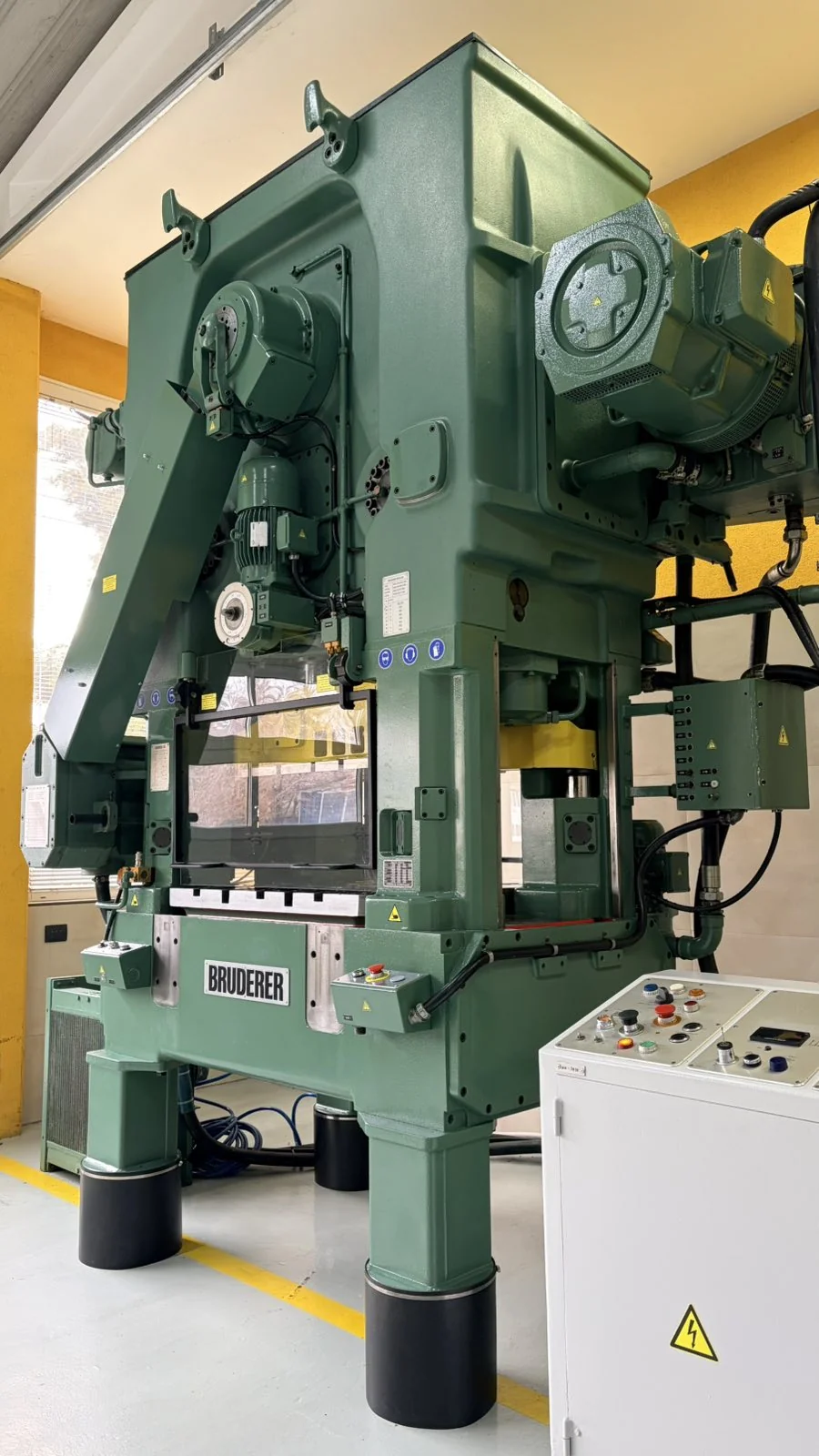

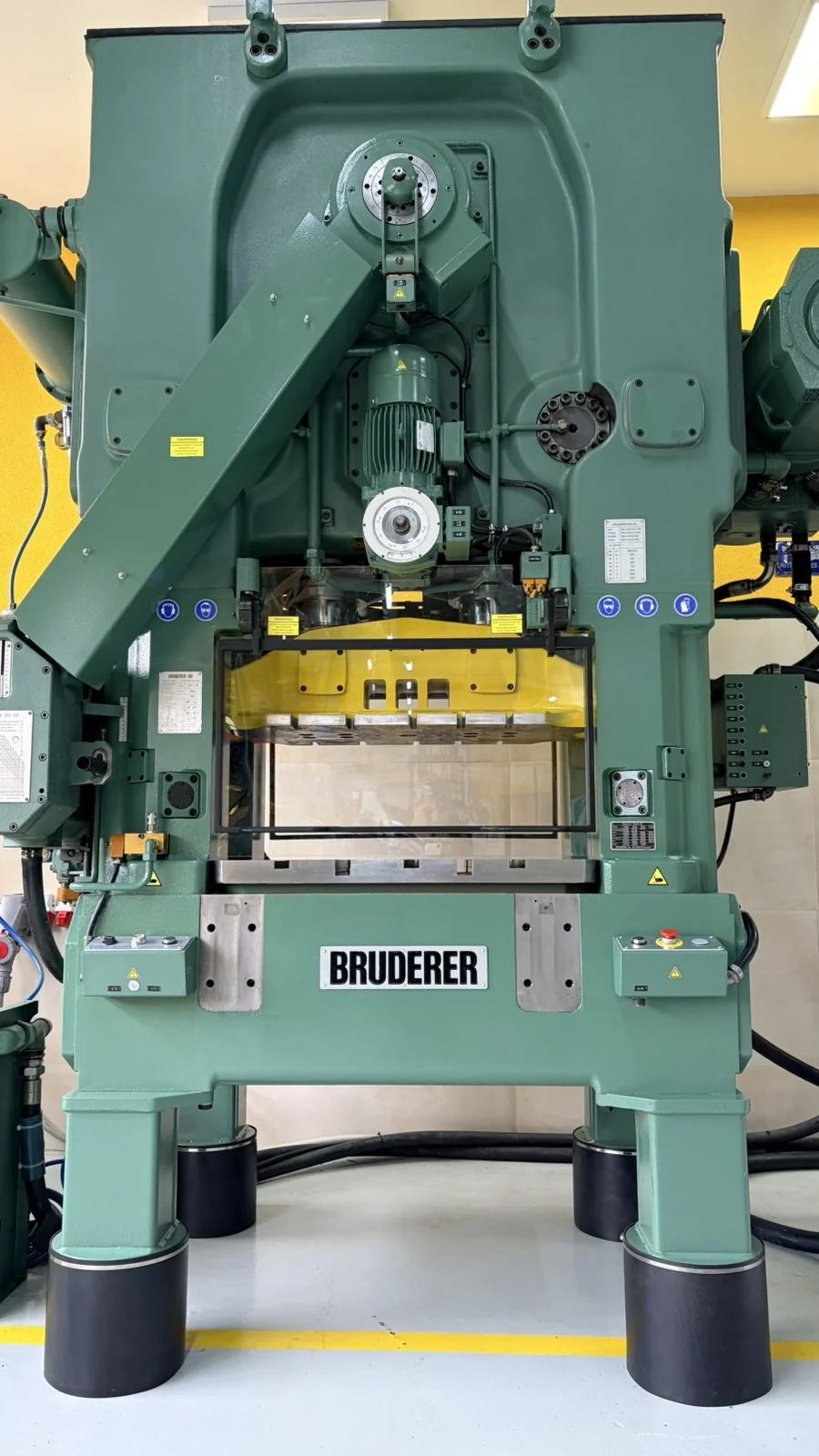

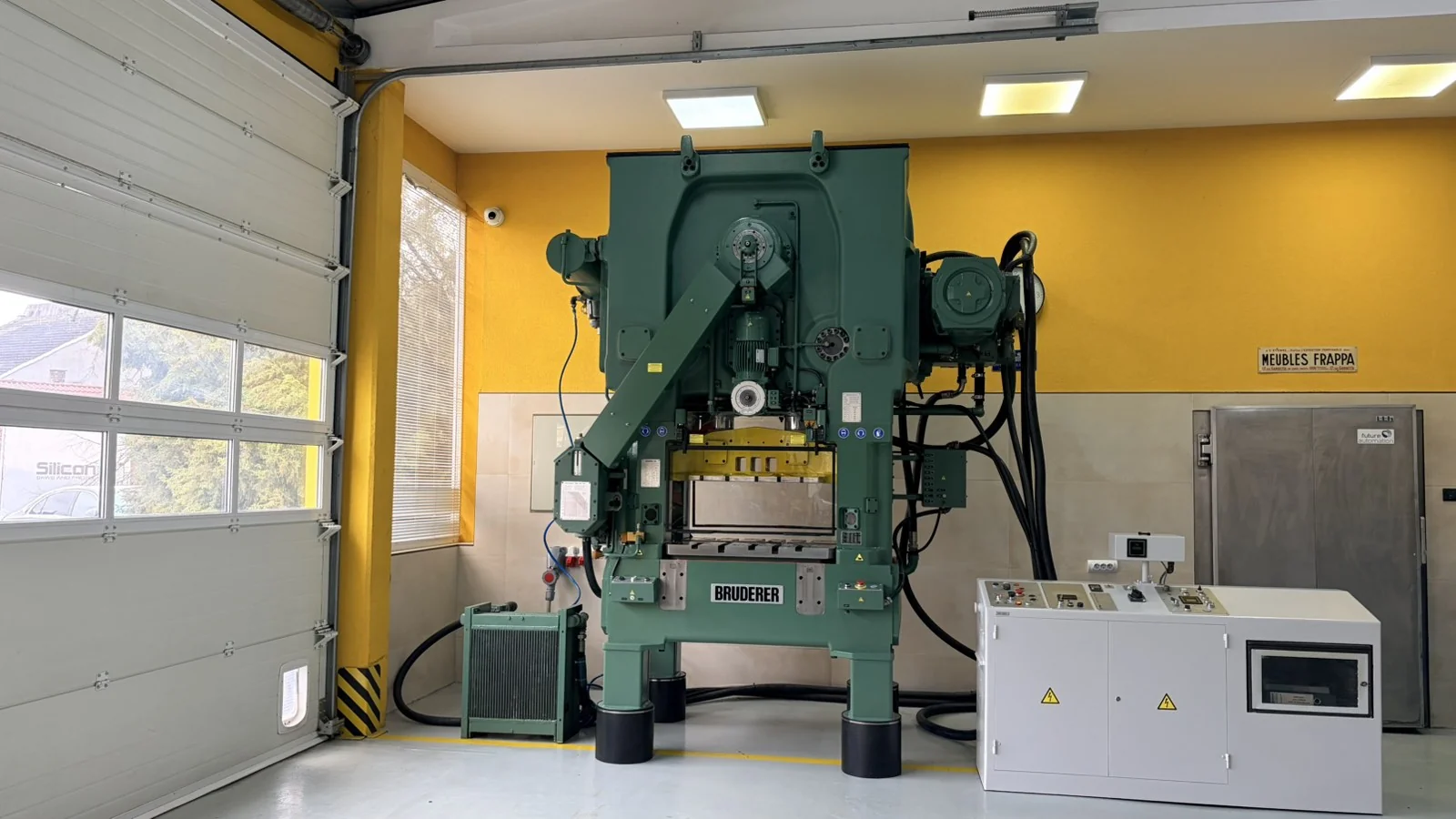

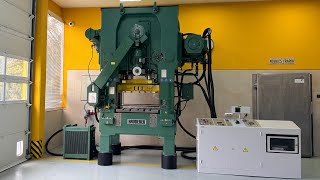

    Bruderer BSTA 80

    High Speed Automatic Press • 1987 • ID: 32825

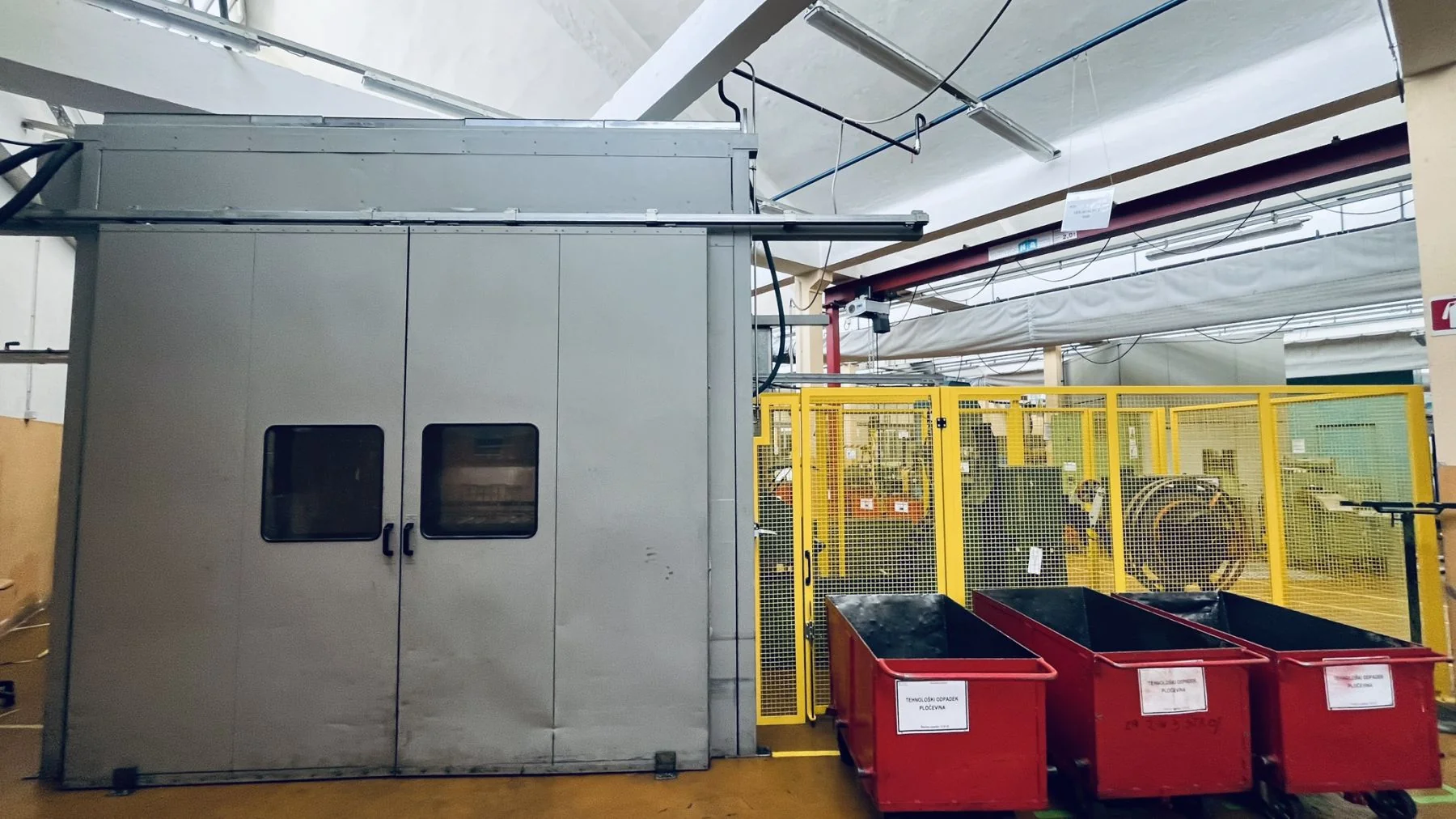

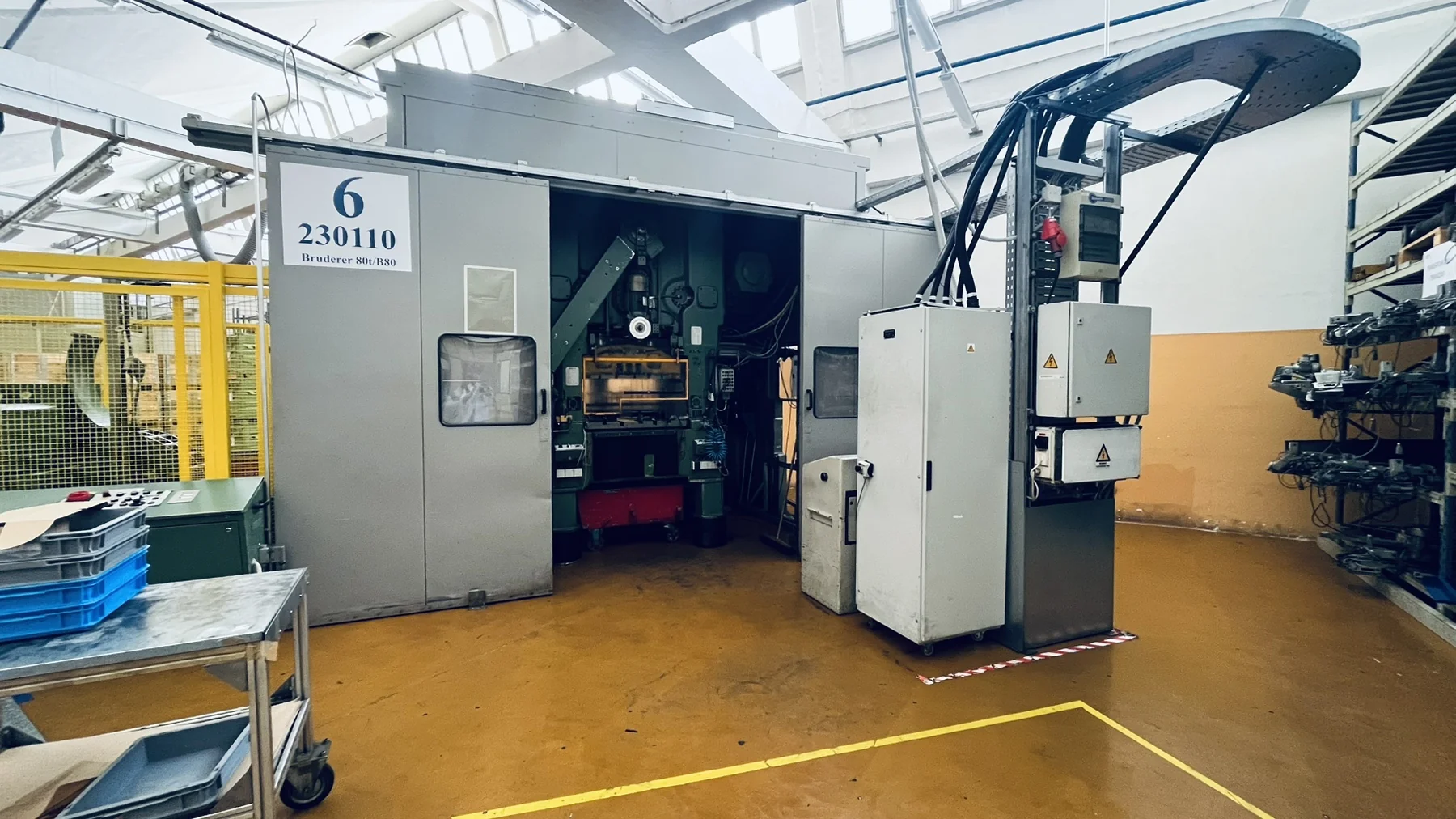

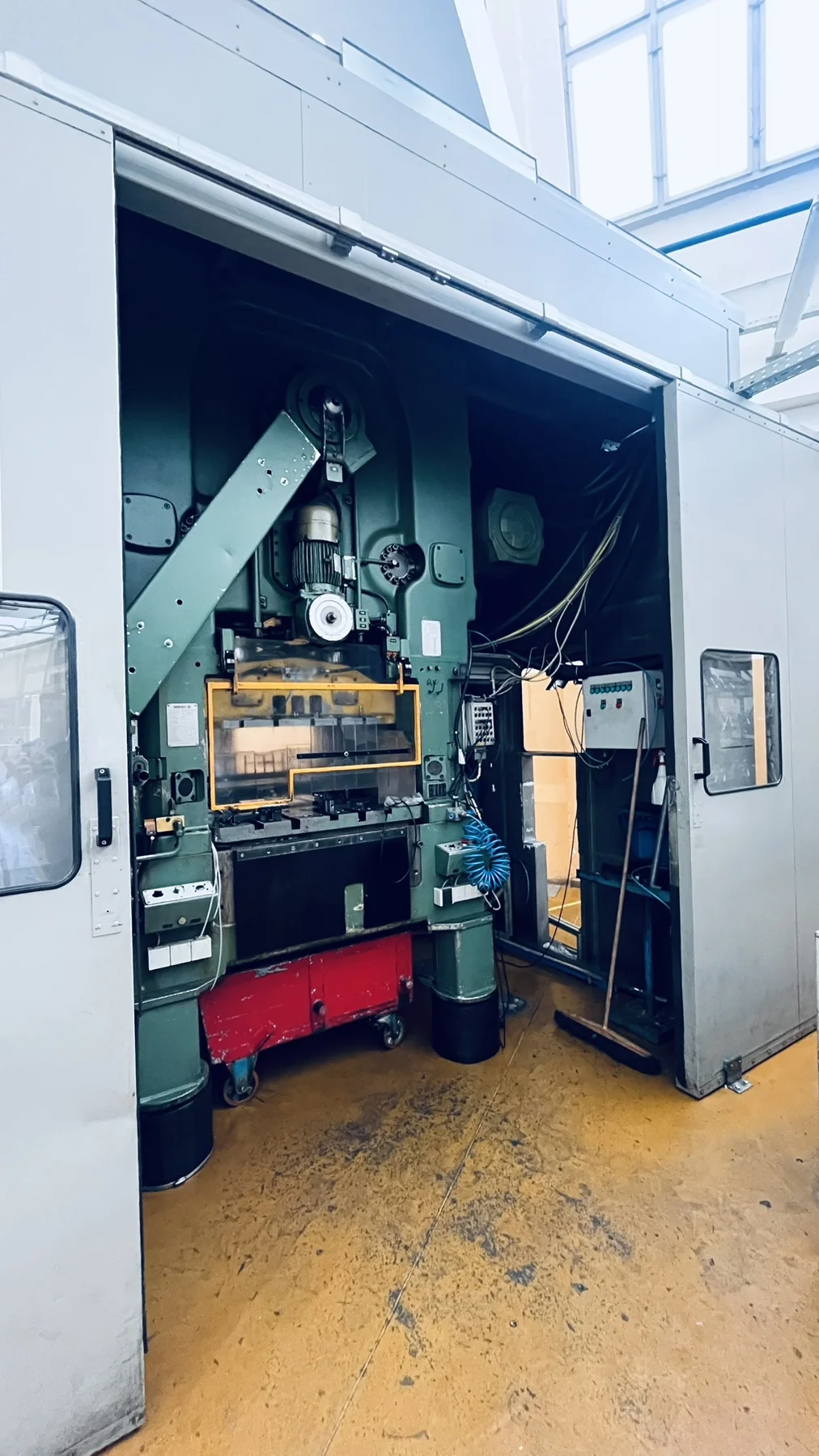

    This high-speed precision stamping press, manufactured in 1987, delivers a maximum pressing force of 80 tons (800 kN) and is designed for demanding progressive-tool applications. With an operating range of 100–1000 strokes per minute, it combines high productivity with exceptional process stability. The machine features adjustable stroke lengths from 16 to 63 mm, a ram adjustment of 76 mm, and supports tools up to 970 mm width. A Bruderer BBV 202/120 strip feeder is included, allowing strip widths up to 202 mm and feed pitches up to 120 mm, ensuring precise material handling. The soundproof cabin is not included in the offer, but it can be purchased separately. We also have many additional Bruderer, Schaal, Mabu and Bihler press models in stock, as well as decoilers and strip straighteners.

    Call Us

    Technical Specifications

    Max. pressing force: 80 tons / 800 kN
    Strokes per minute:100 – 1000 SPM
    Main voltage: 400 V
    Frequency: 50 - 60 Hz
    Power consumption: 43 kW
    Control voltage:24 VAC
    Year of manufacture: 1987
    Compressed air connection: 6–10 bar

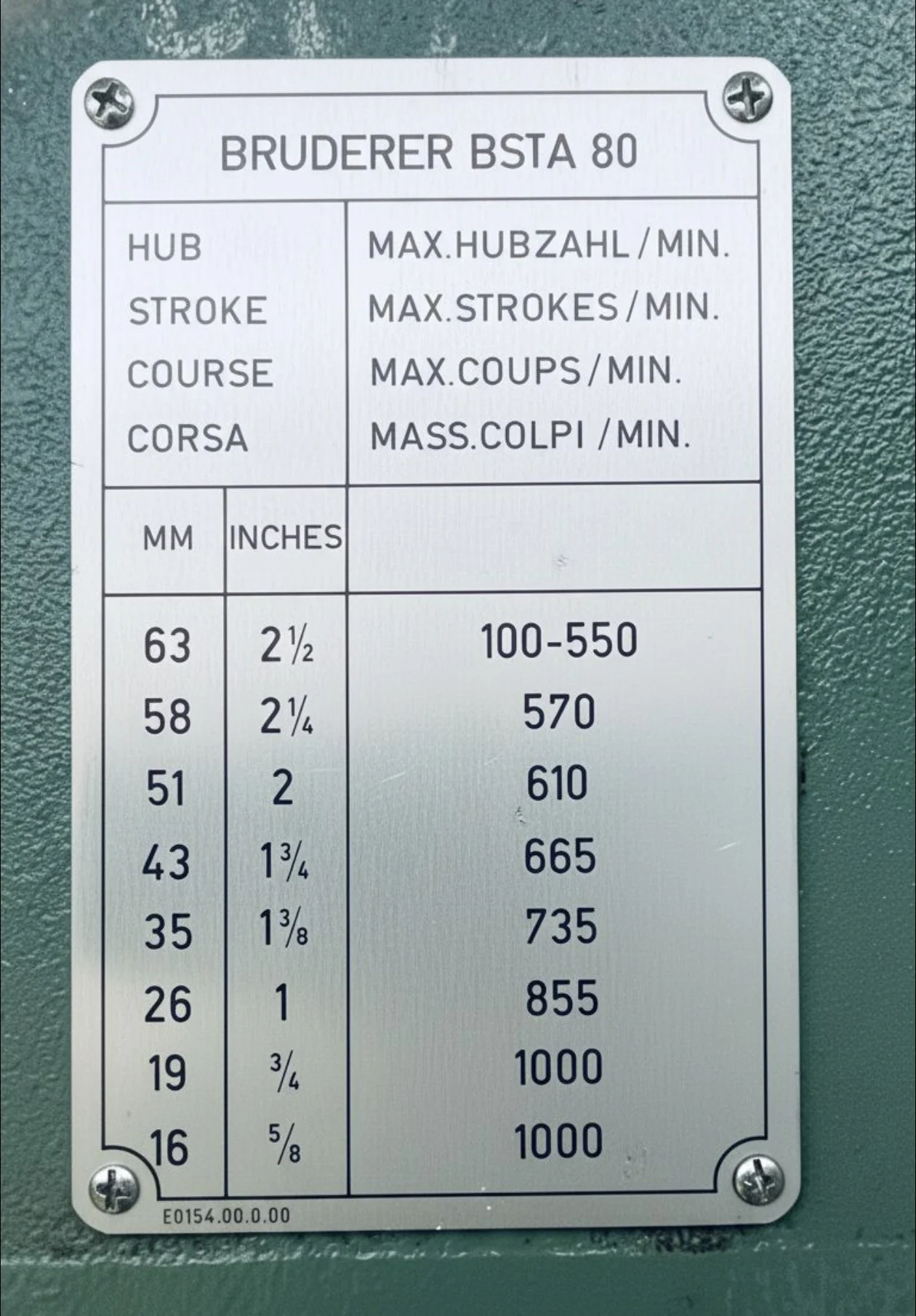

    Stroke length adjustment: 16, 19, 26, 35, 43, 51, 58, 63 mm
    Ram adjustment: 76 mm
    Maximum tool width: 970 mm
    Bolster area: L–R: 950 mm F–B: 910 mm
    Ram area: L–R: 760 mm F–B: 510 mm
    Strip inlet height: Max.: 160 mm Min.: 70 mm
    Strip feeder (left): Bruderer BBV 202/120
    Max. strip width:200 mm
    Feed pitch: 0–120 mm
    Bed opening: L–R: 920 mm F–B: 320 mm
    Machine dimensions: Length: 2834 mm Width: 1742 mm Height: 3460 mm
    Total weight with 1× BBV 202: approx. 17,500 kg

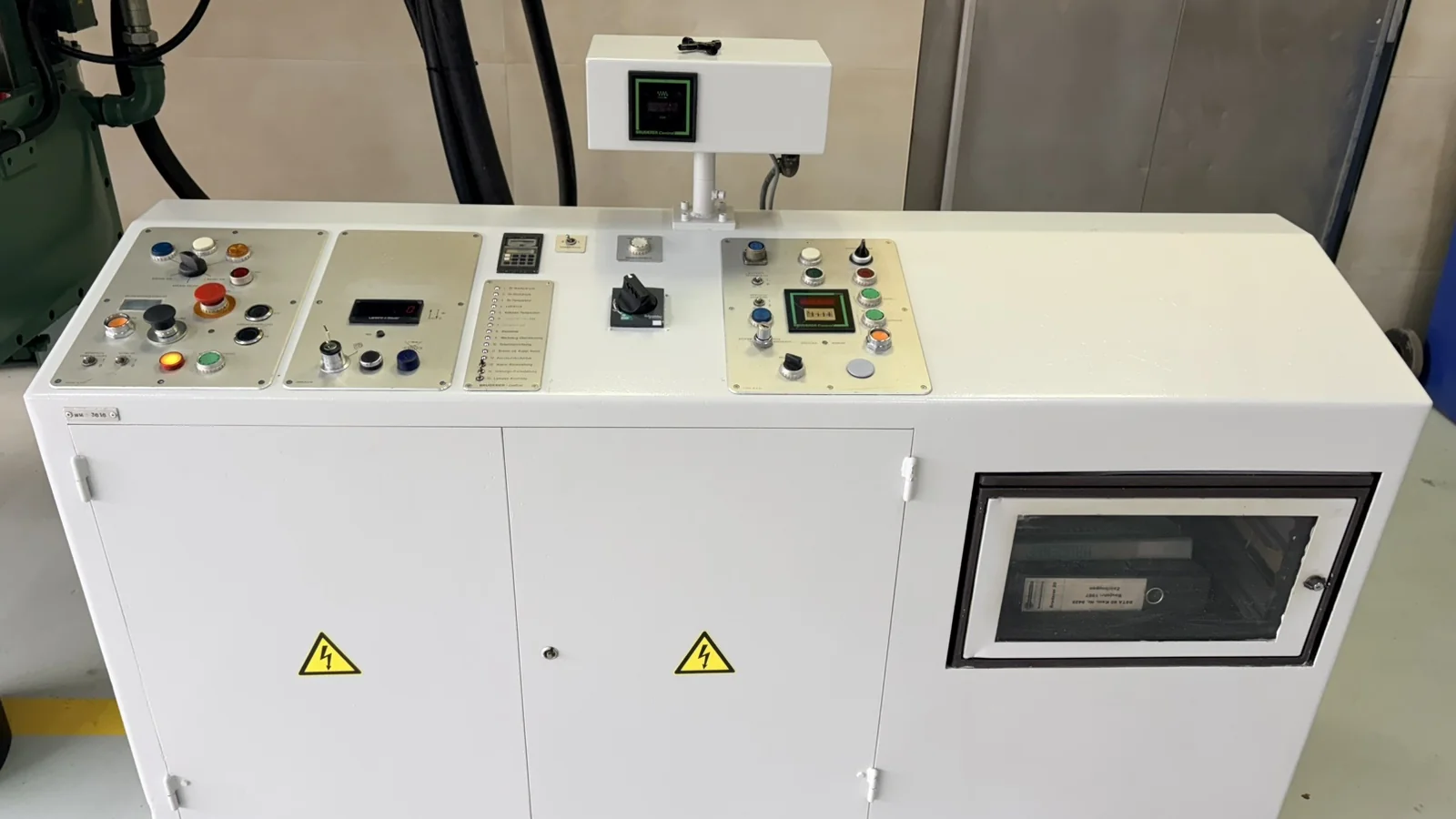

    Electrical cabinet dimensions: Length: 1200 mm Width: 500 mm Height: 1025 mm

    Related Machines

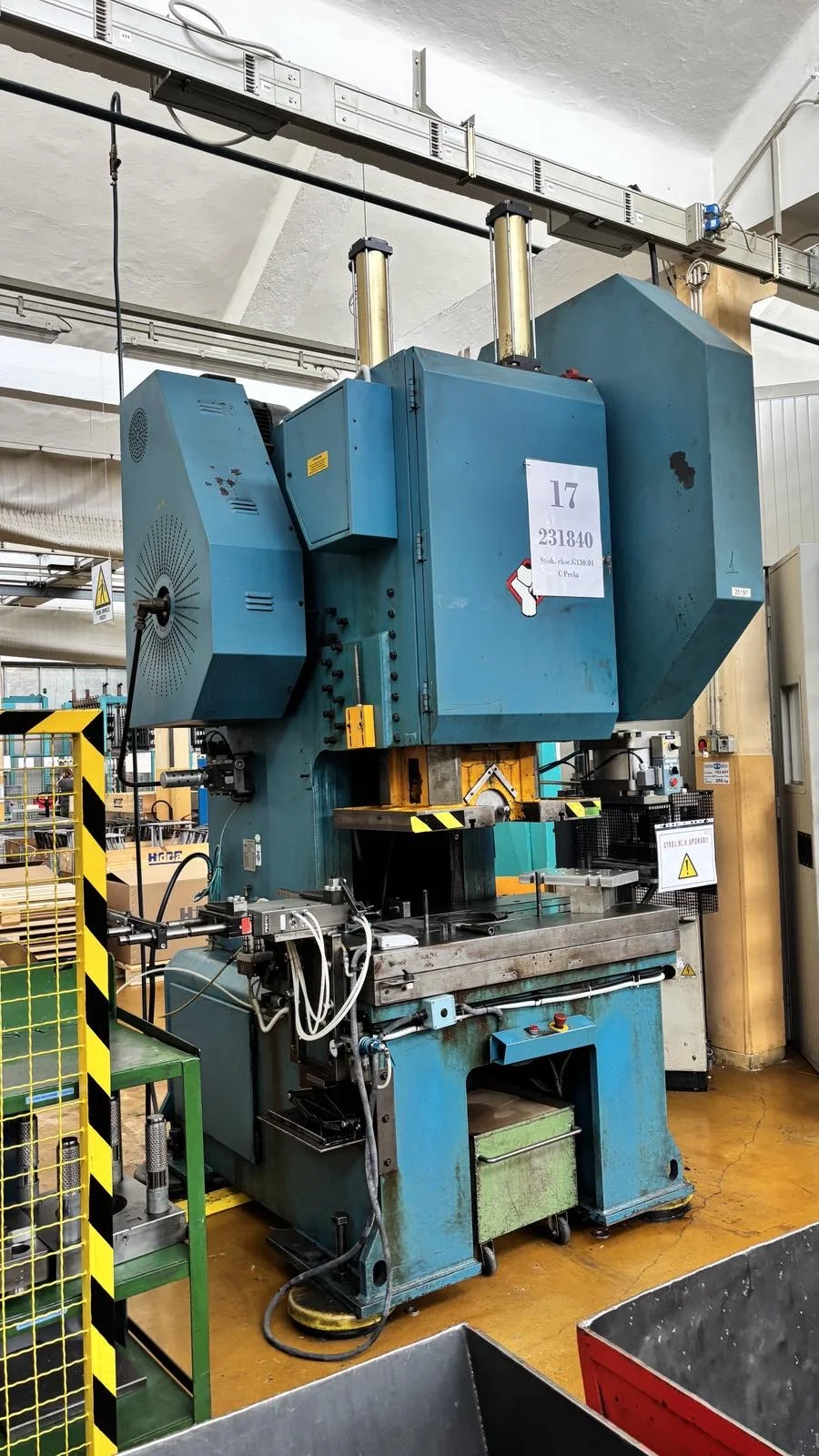

    Sangiacomo T 130 RCE
    In Stock

    1996 • 130T, 55 SPM, Festo BV 200 250 C

    Sangiacomo T 130 RCE

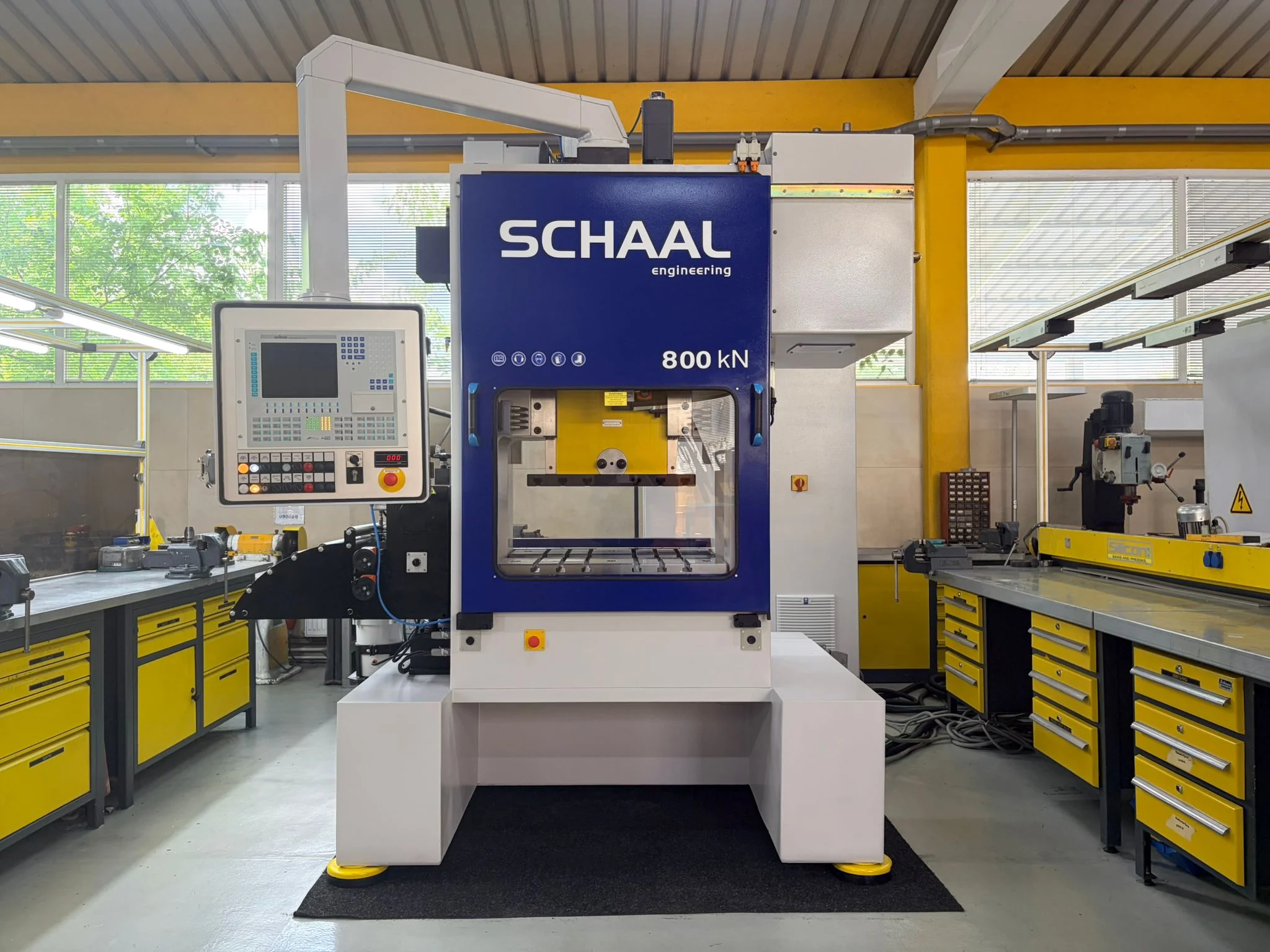

    Schaal SEP 80
    In Stock

    2000 • SWV 3E Servo feed, New control

    Schaal SEP 80

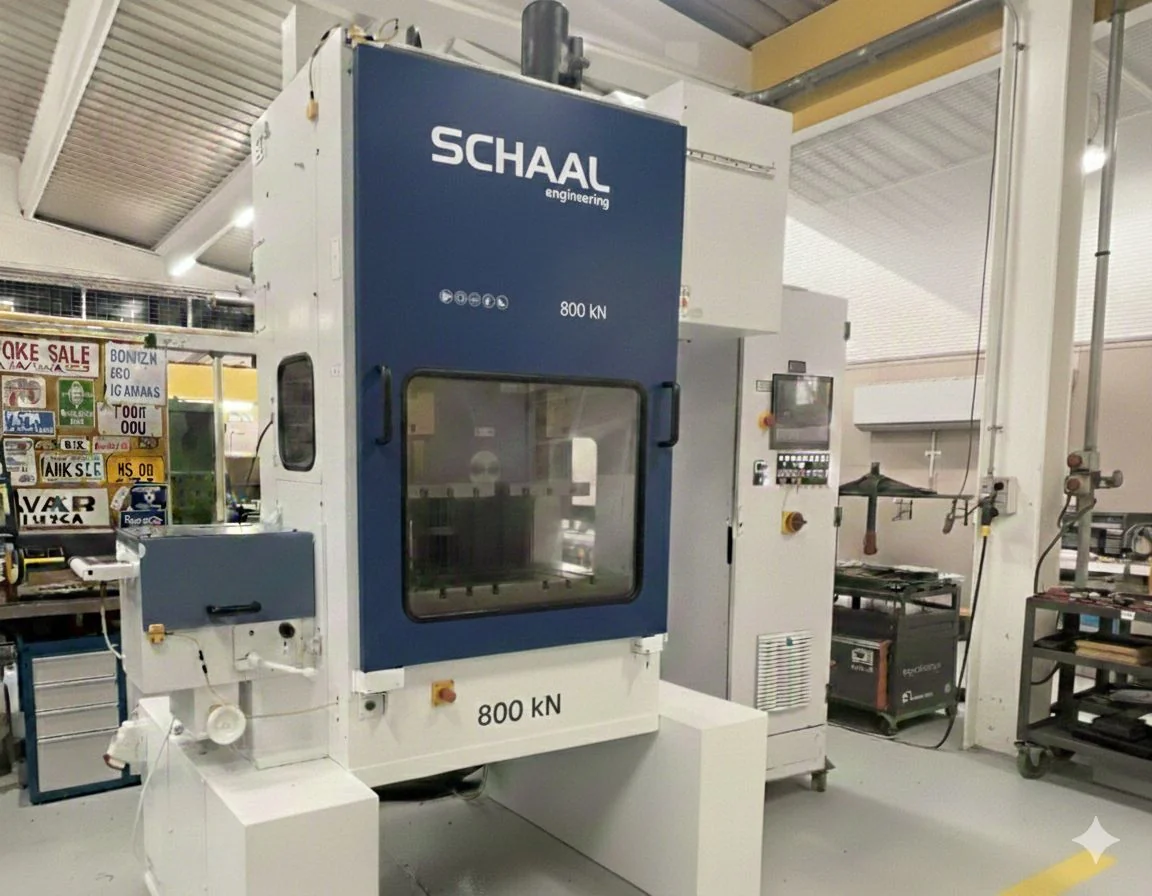

    Schaal SEP 80 SZV 302
    In Stock

    2001 • SZV 302, 320 SPM, Touch Control

    Schaal SEP 80 SZV 302

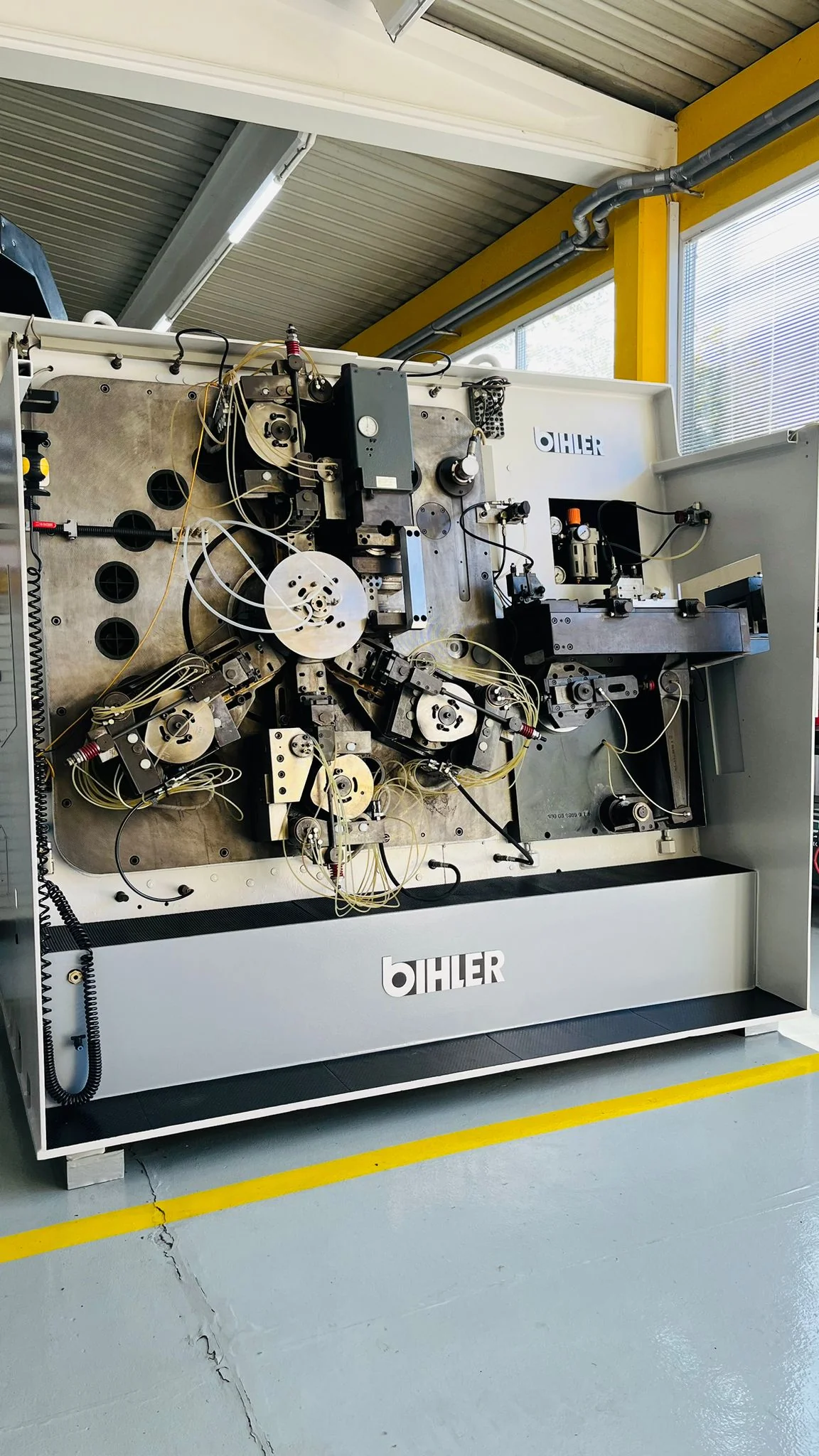

    Bihler GRM 100
