    Schaal SEP 80

    Automatic Stamping Press • 2000 • ID: 34626

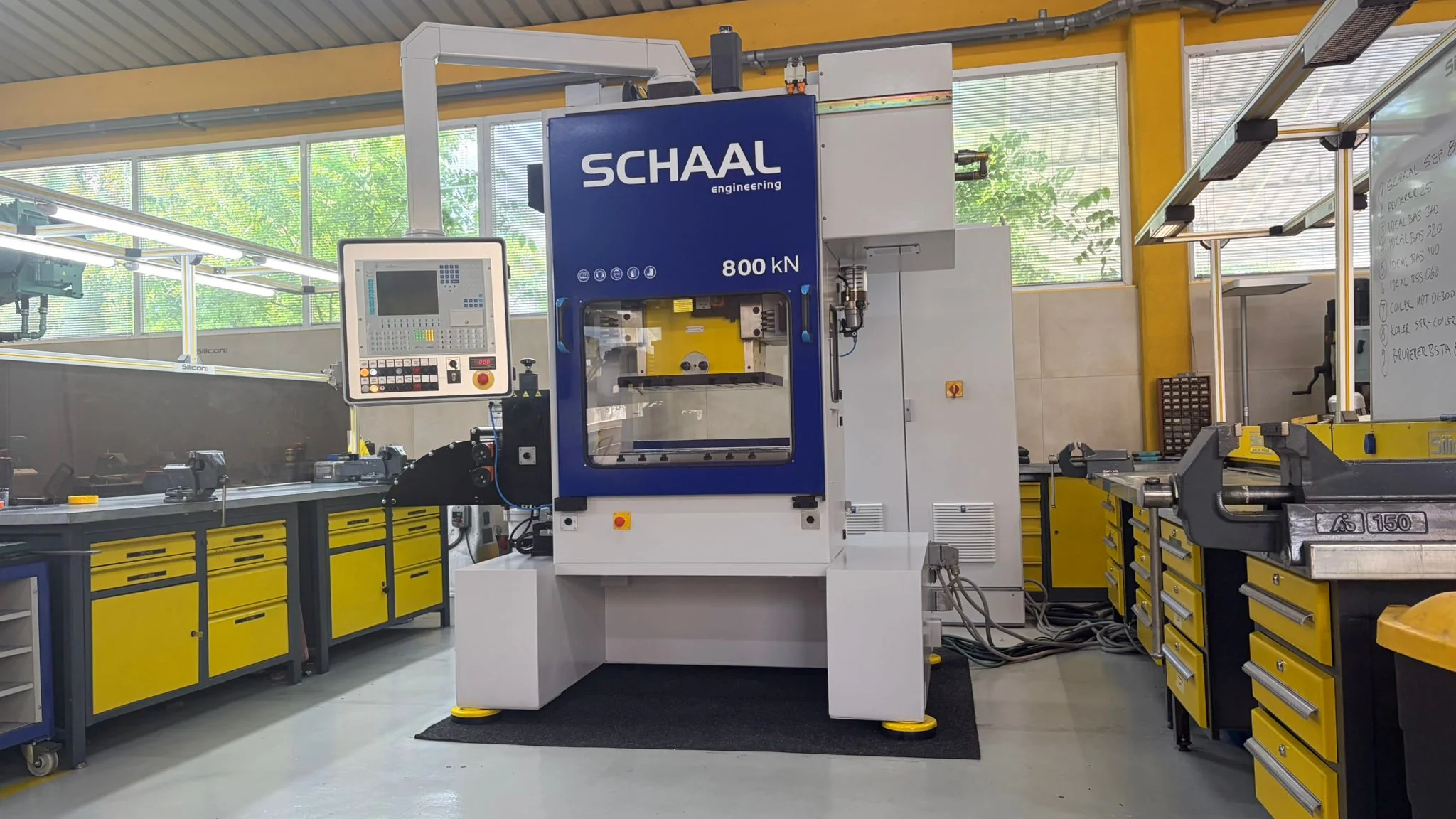

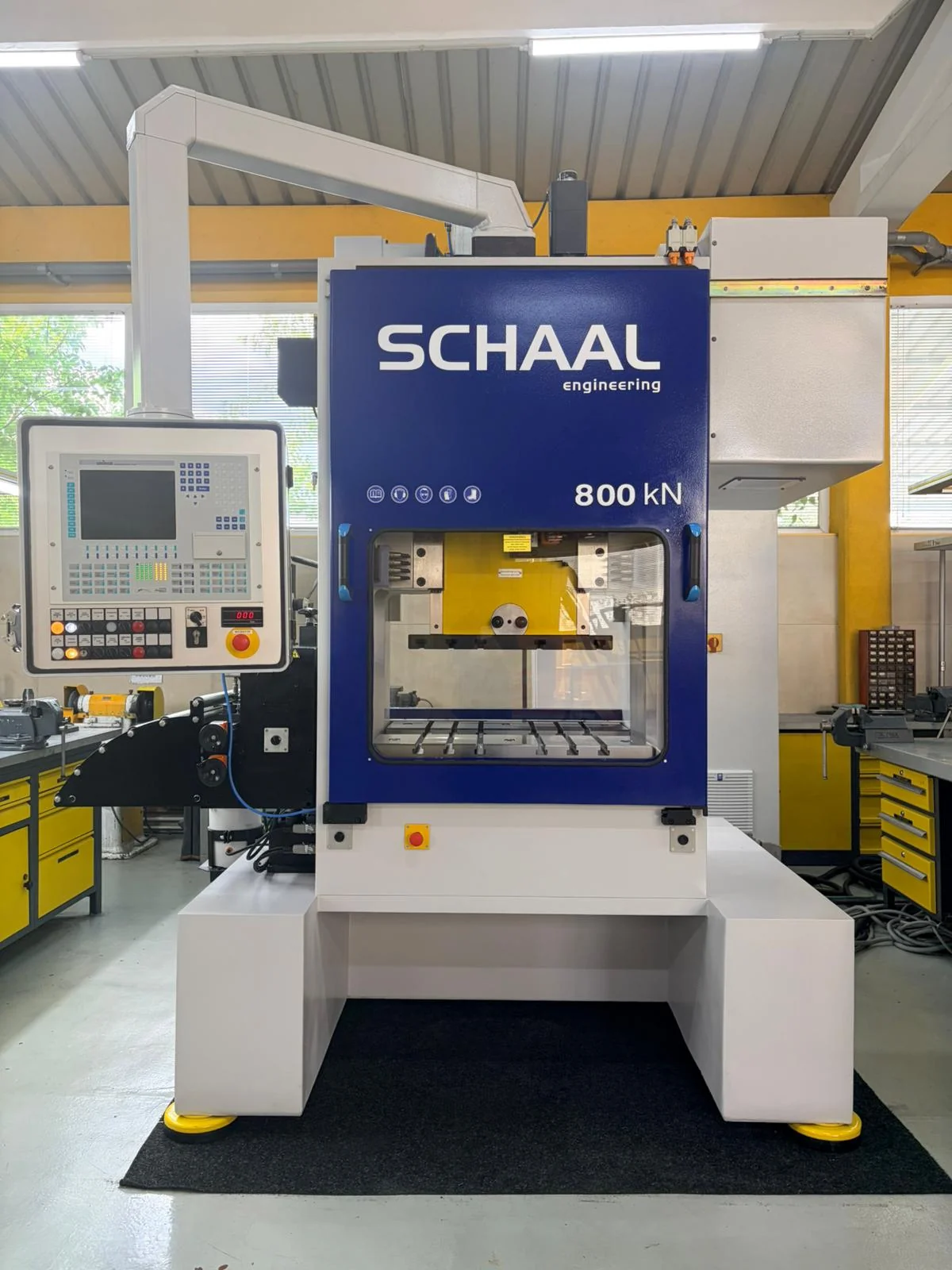

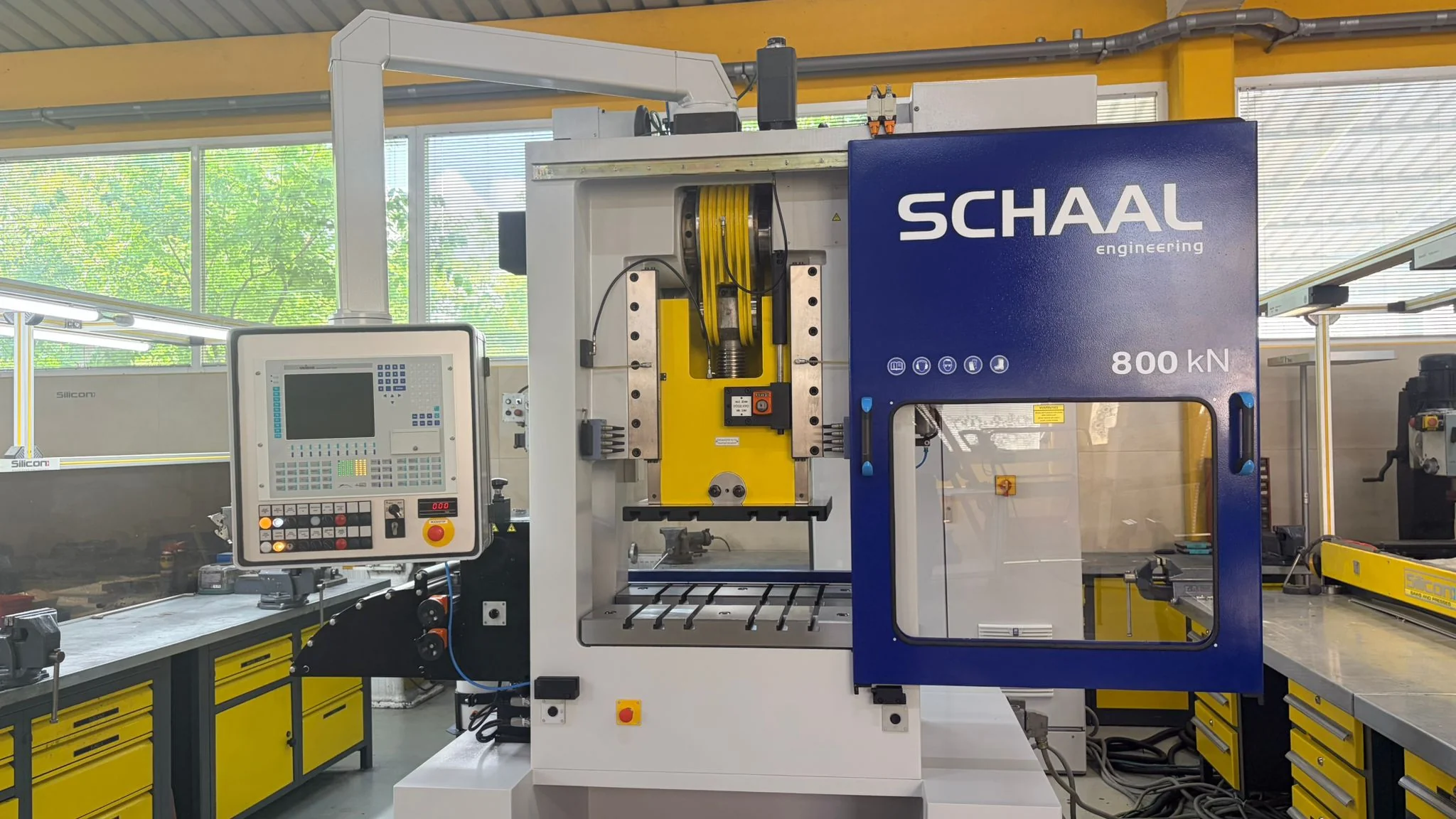

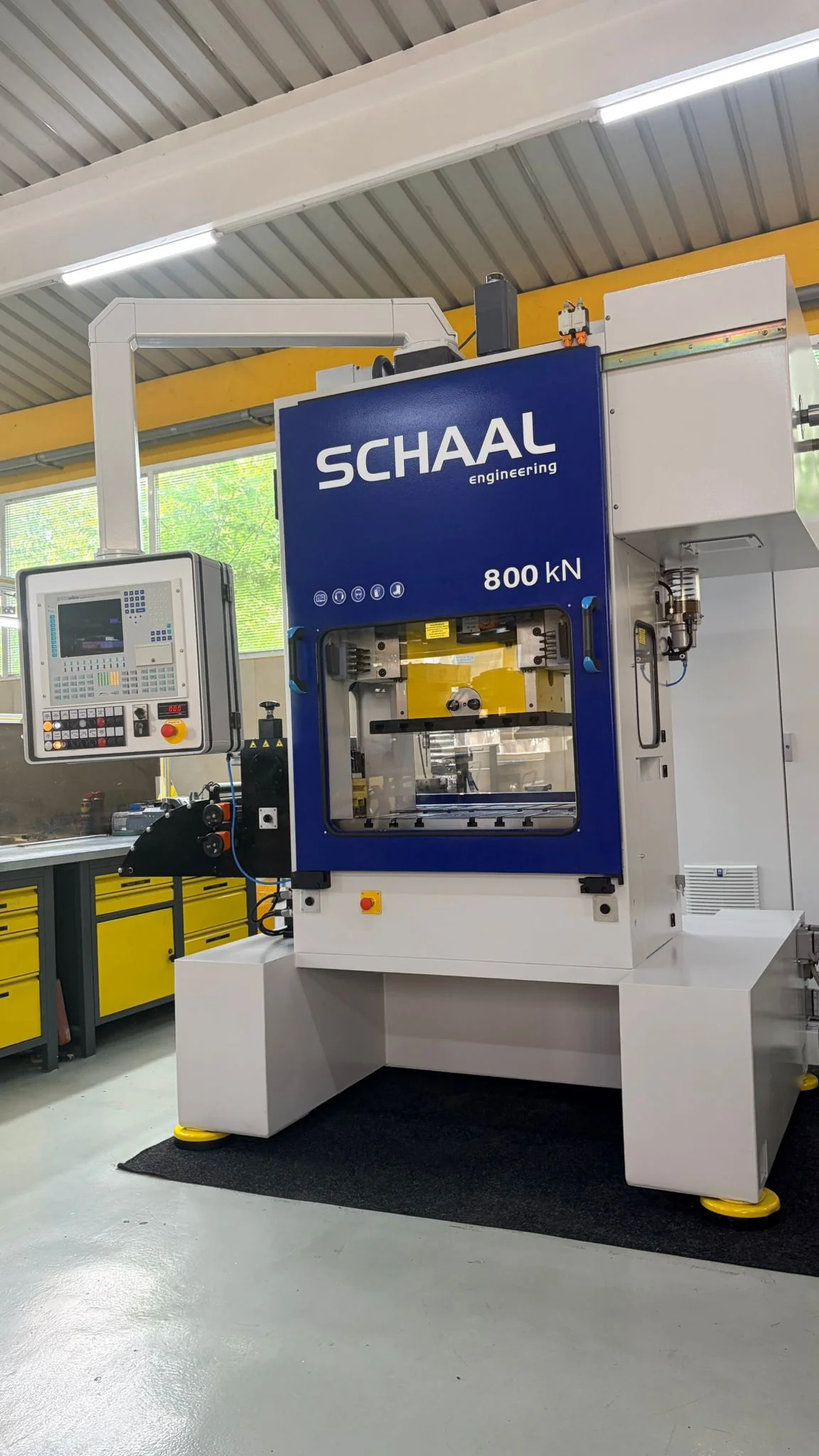

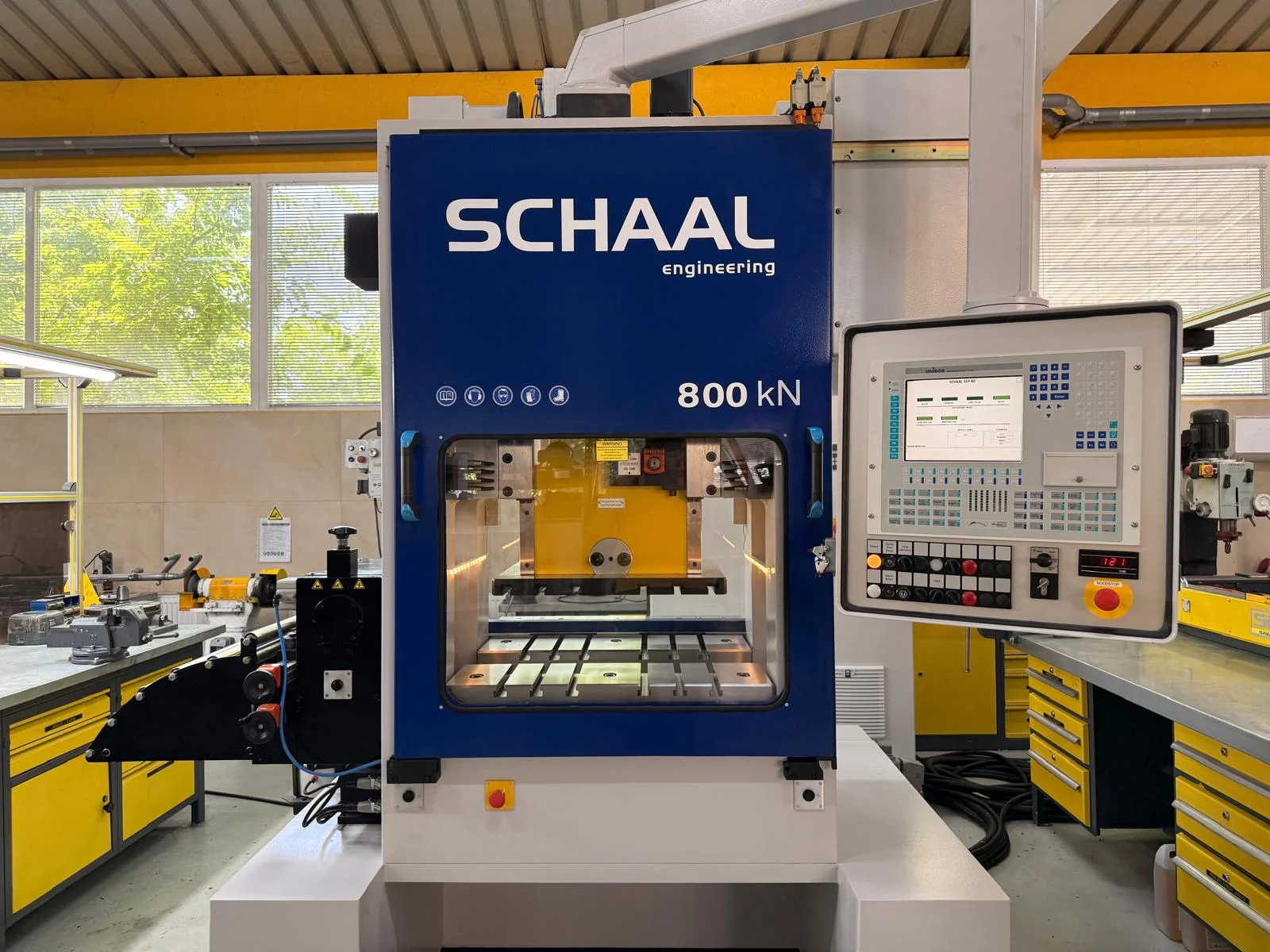

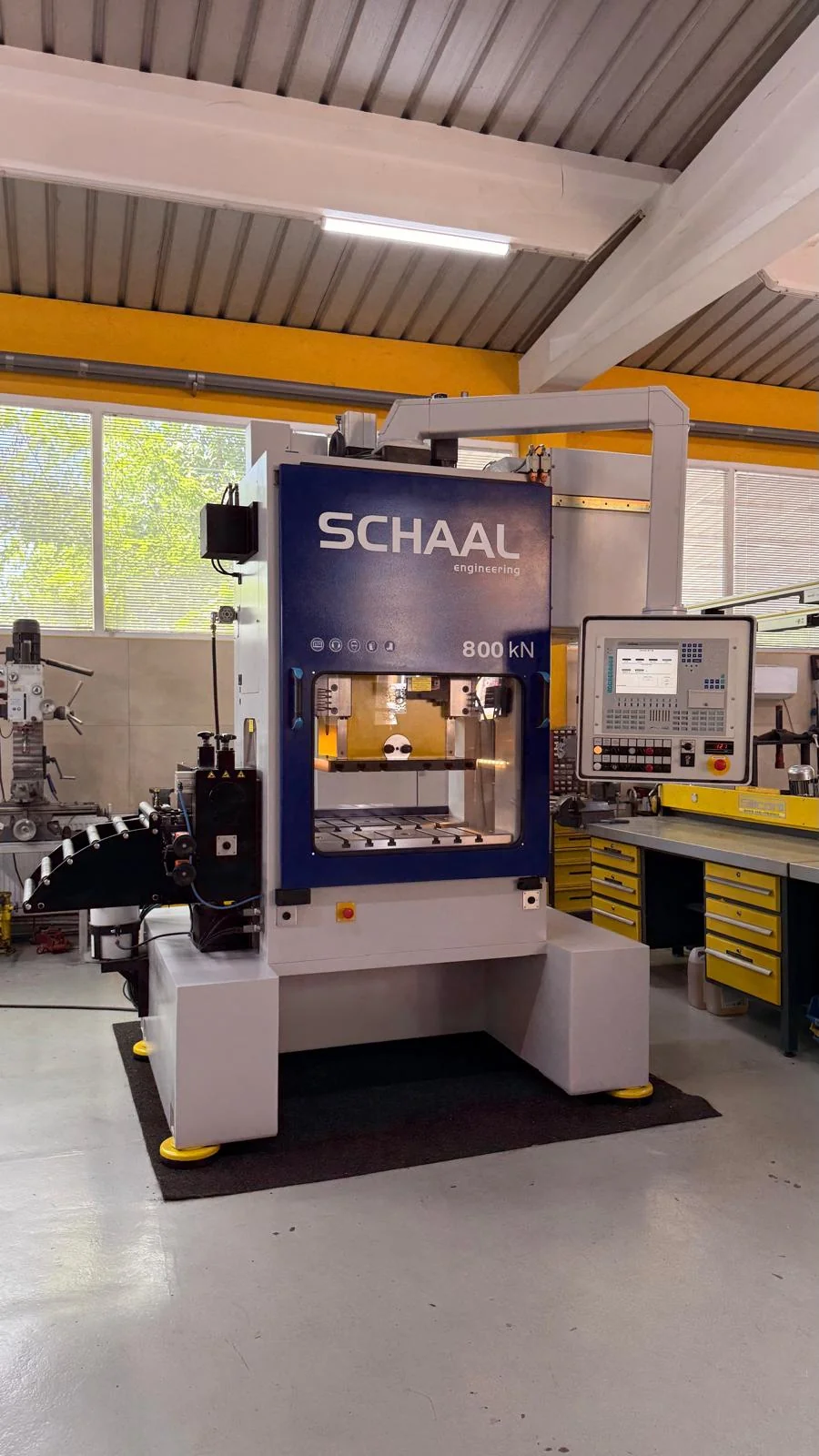

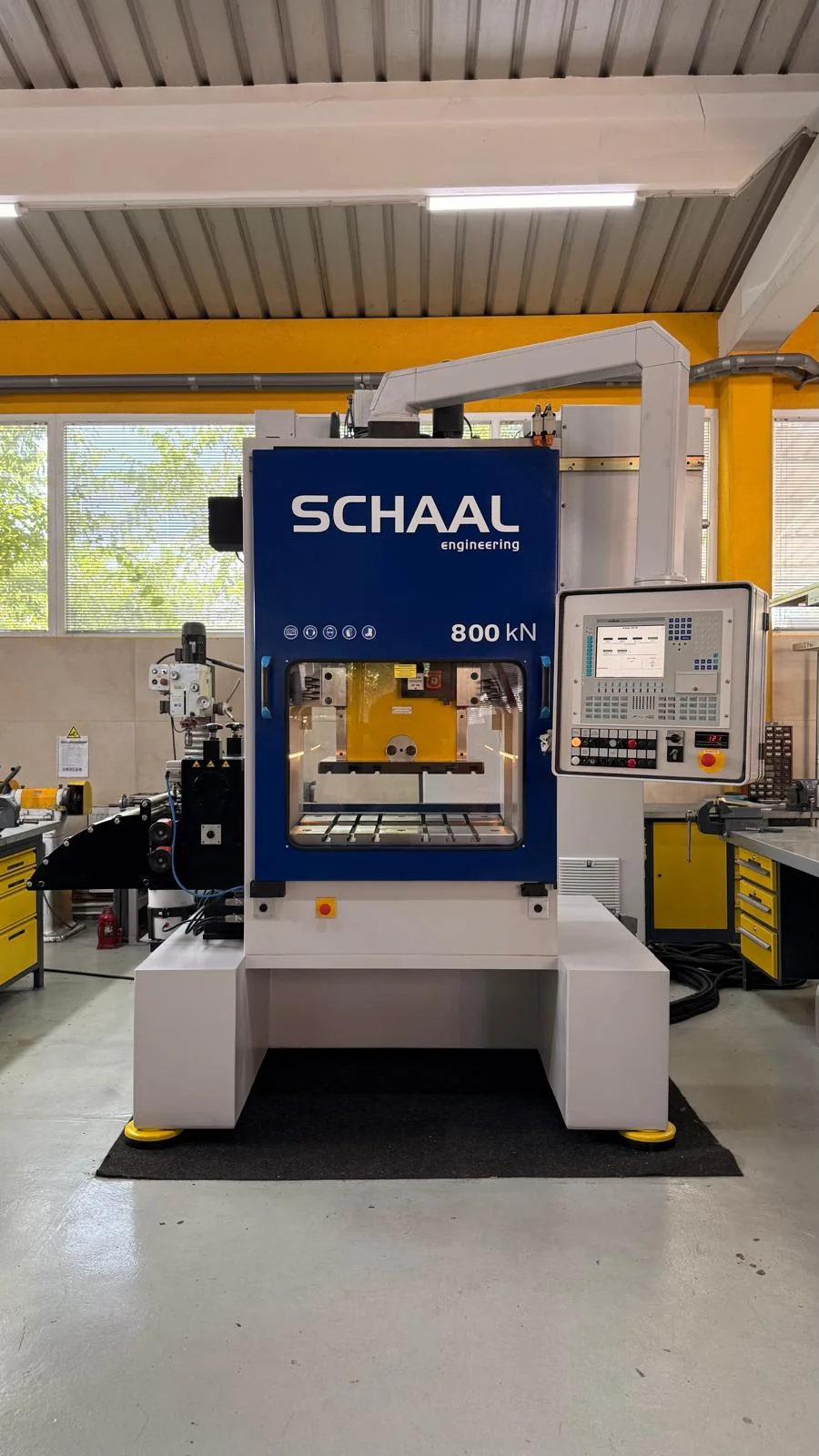

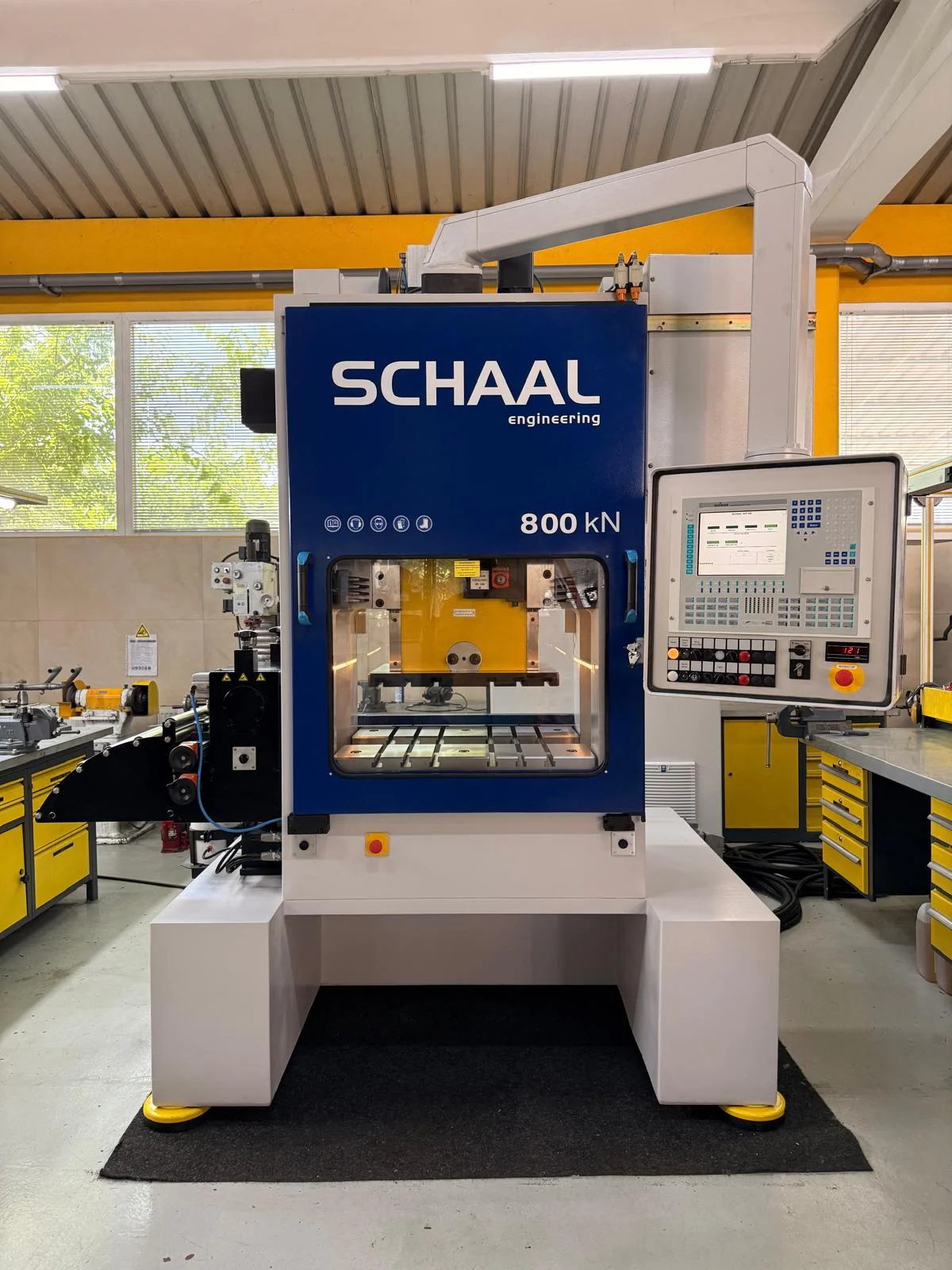

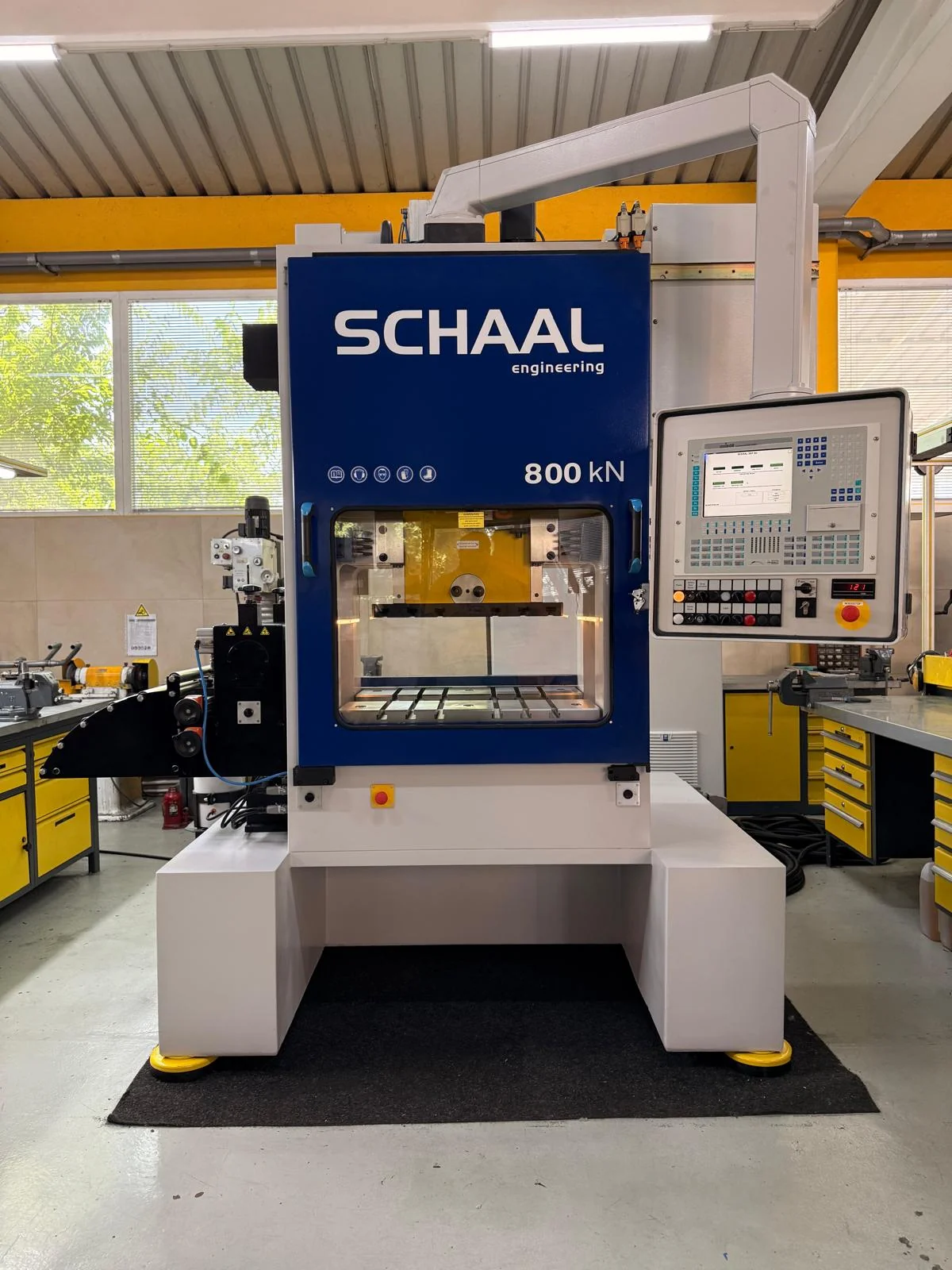

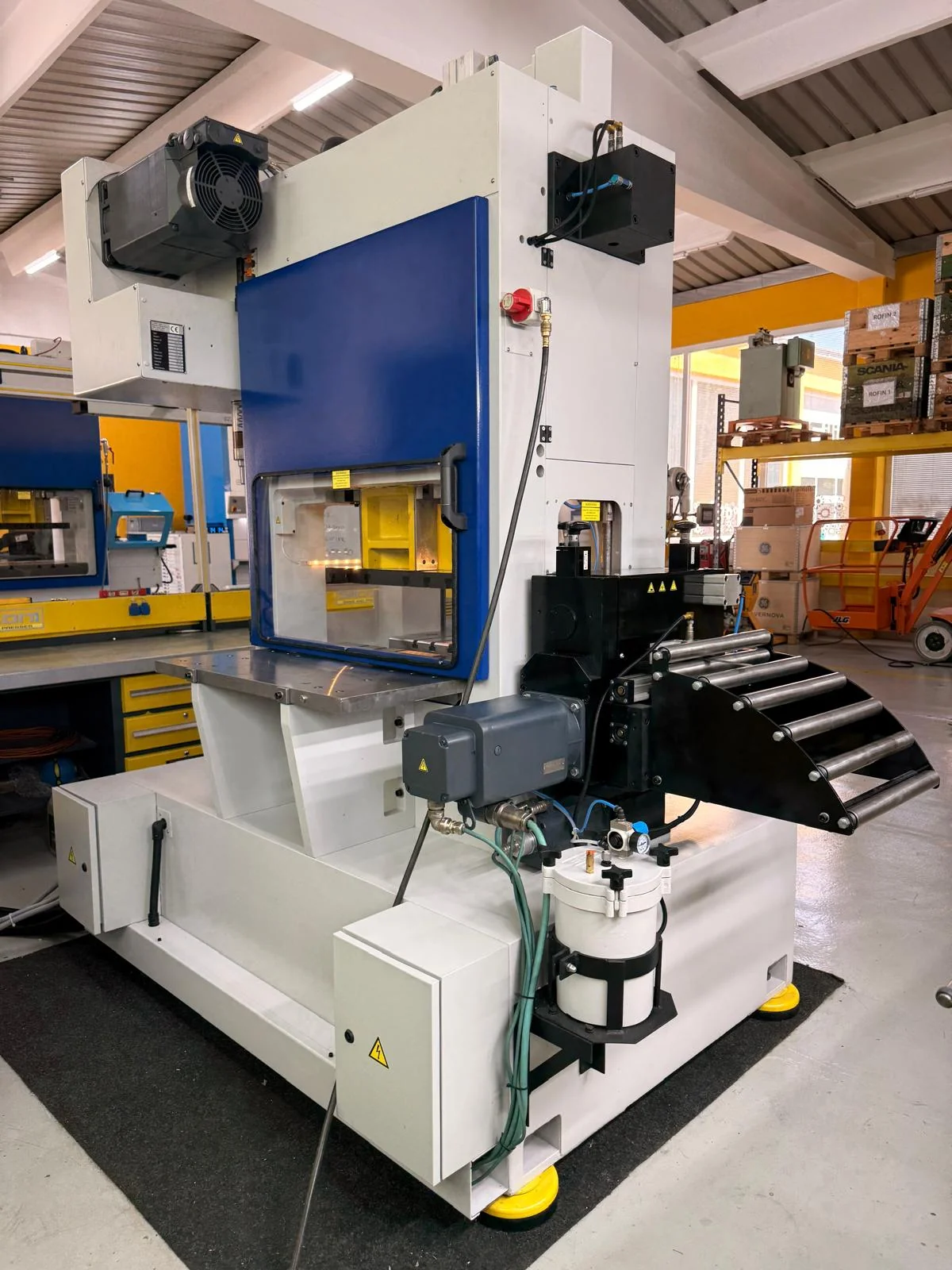

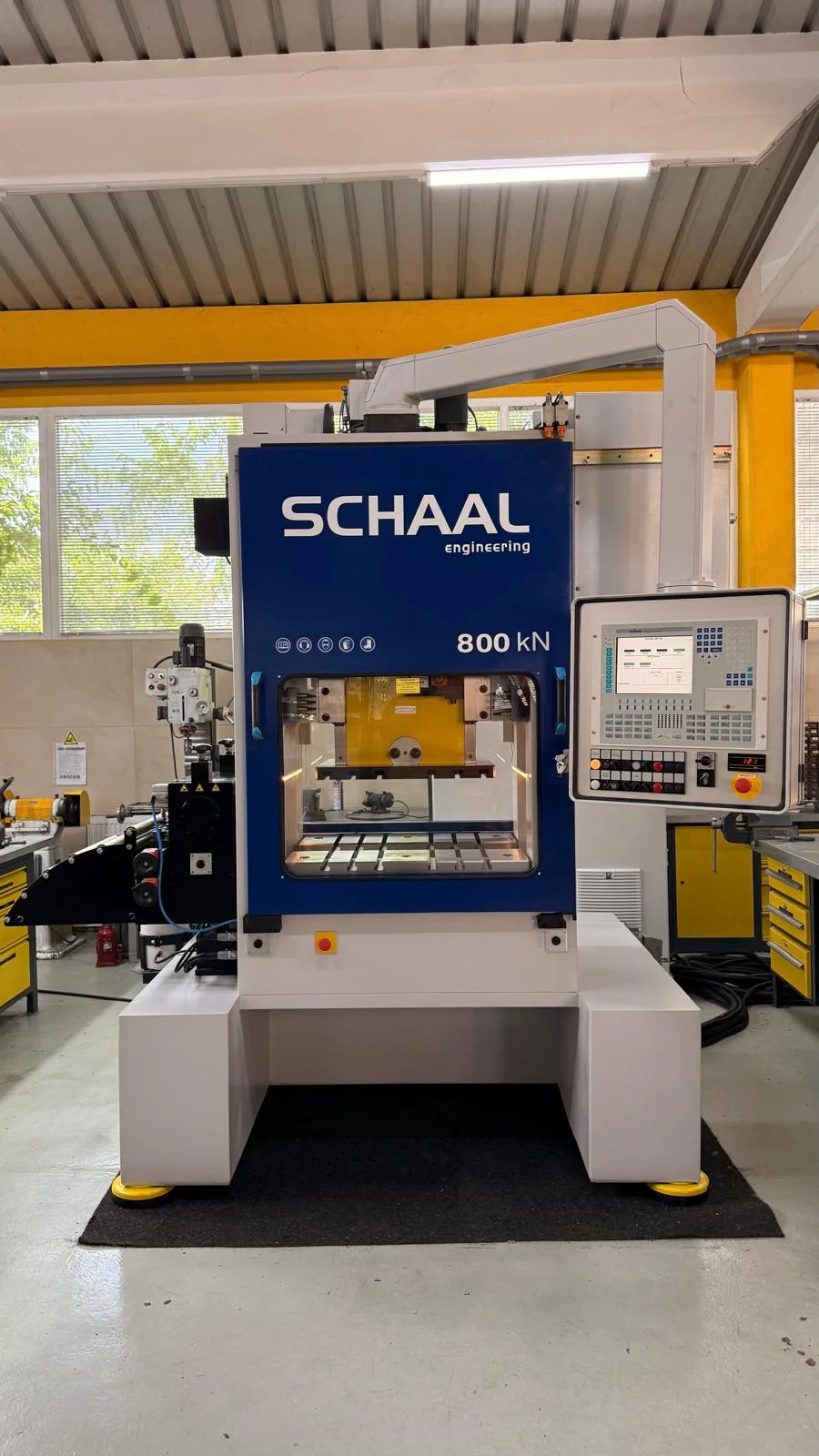

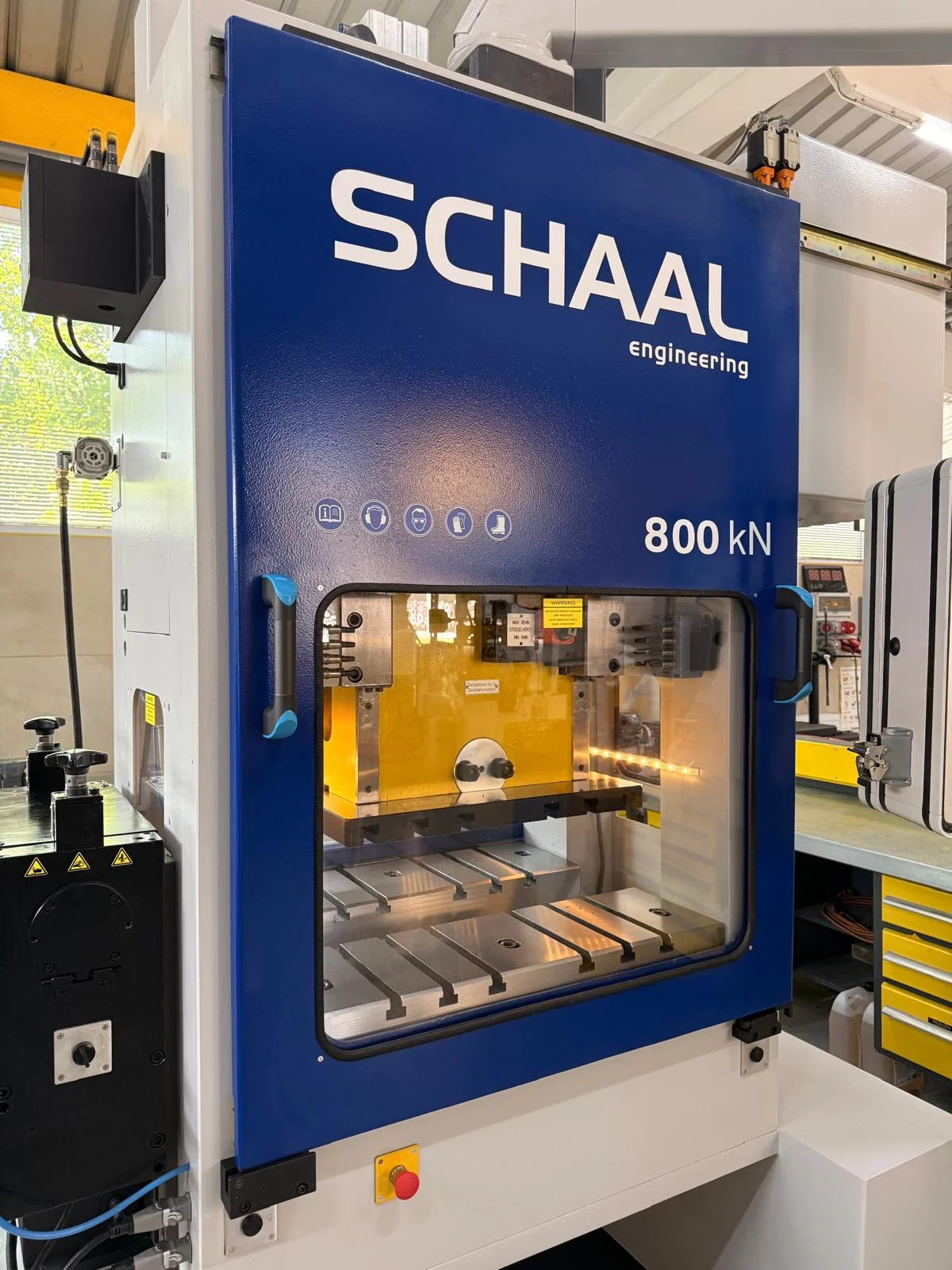

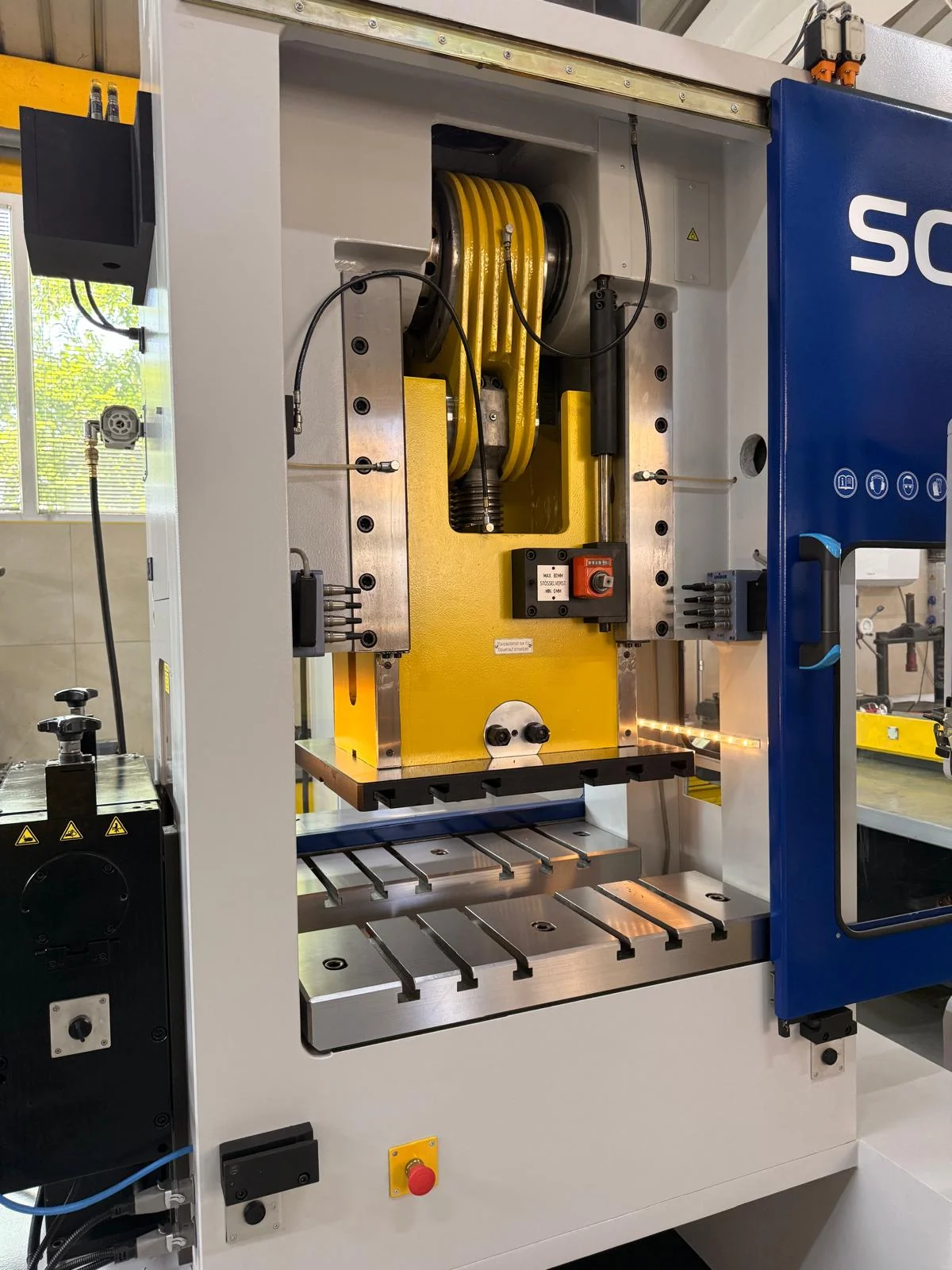

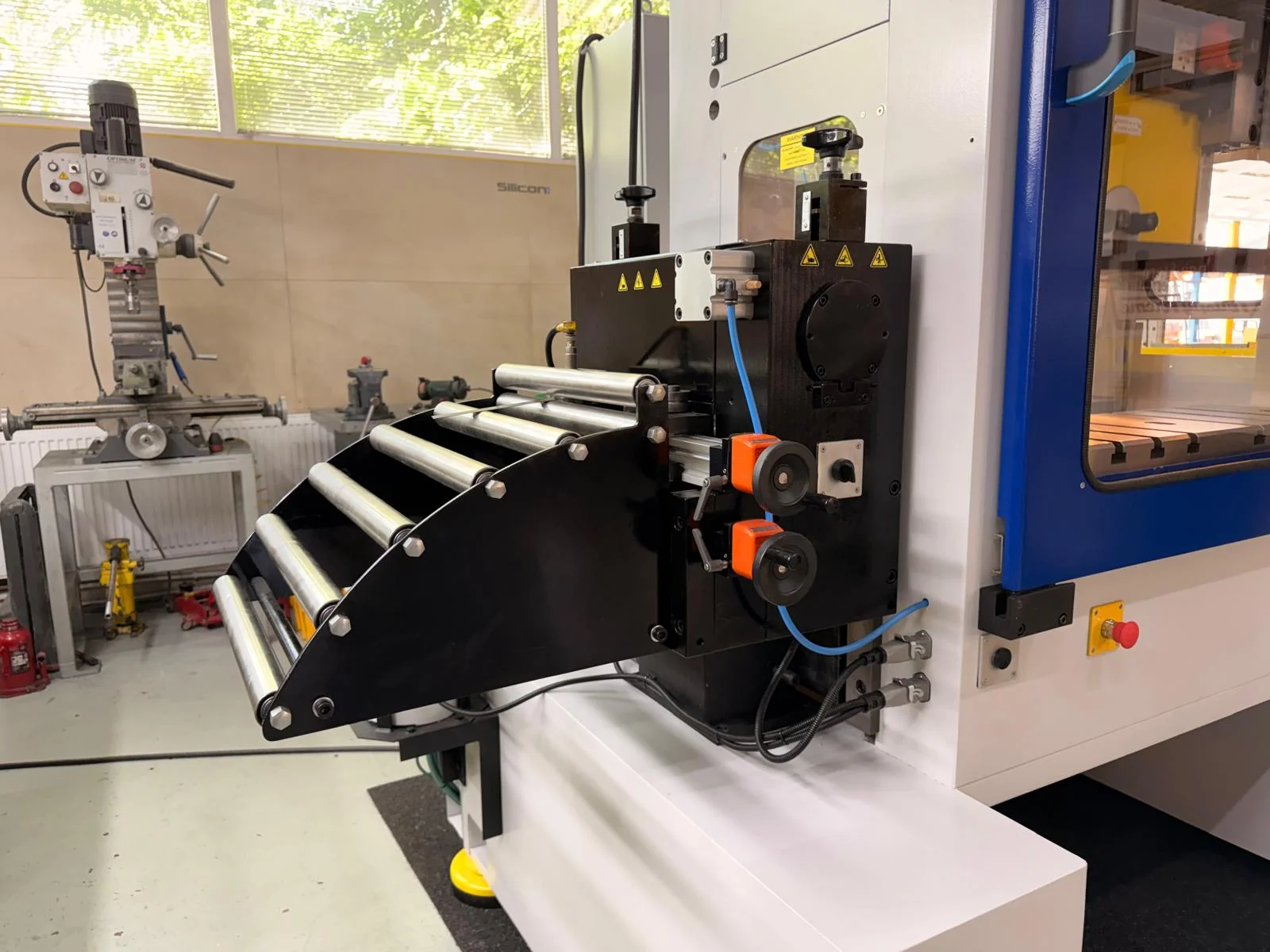

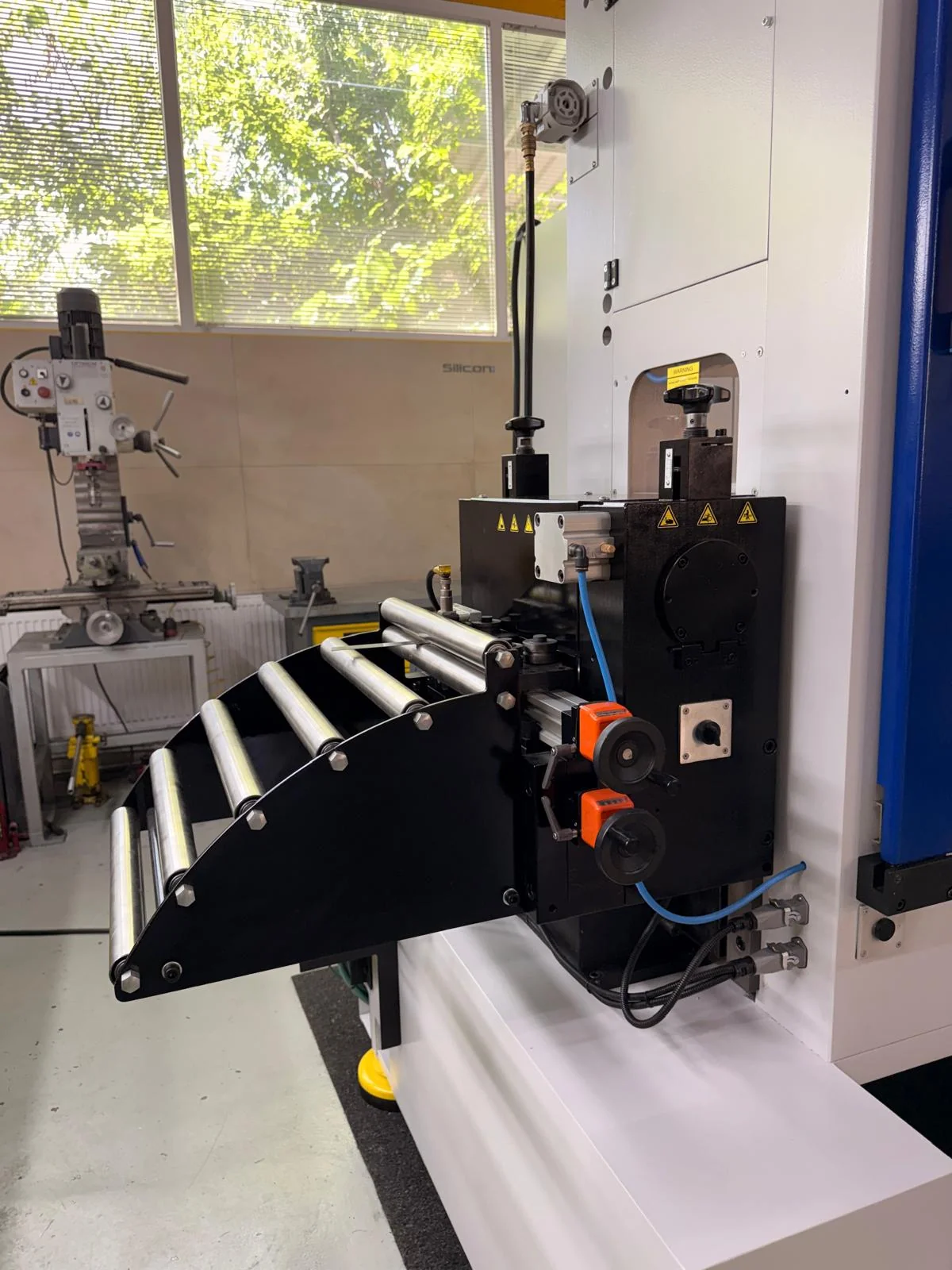

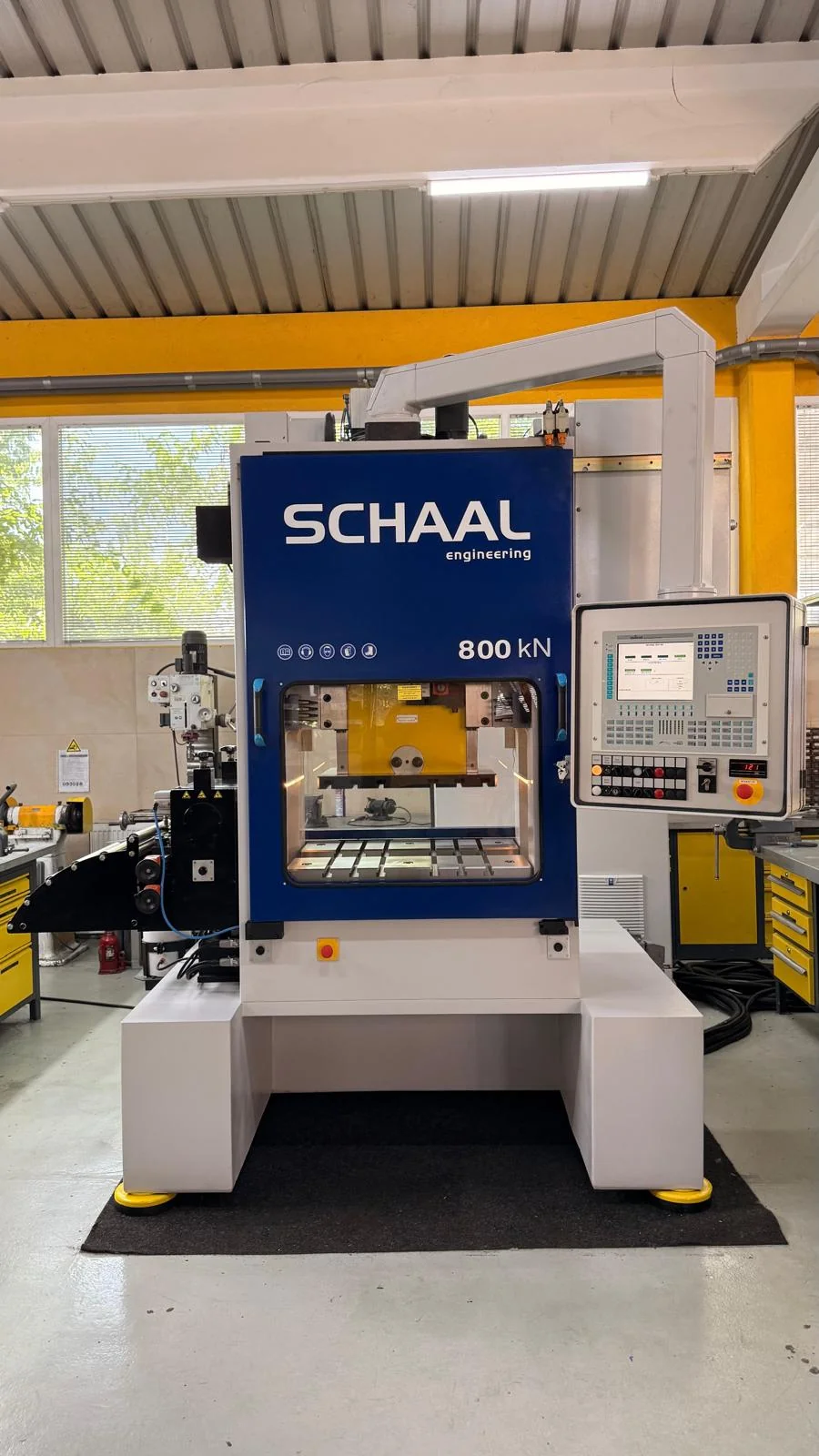

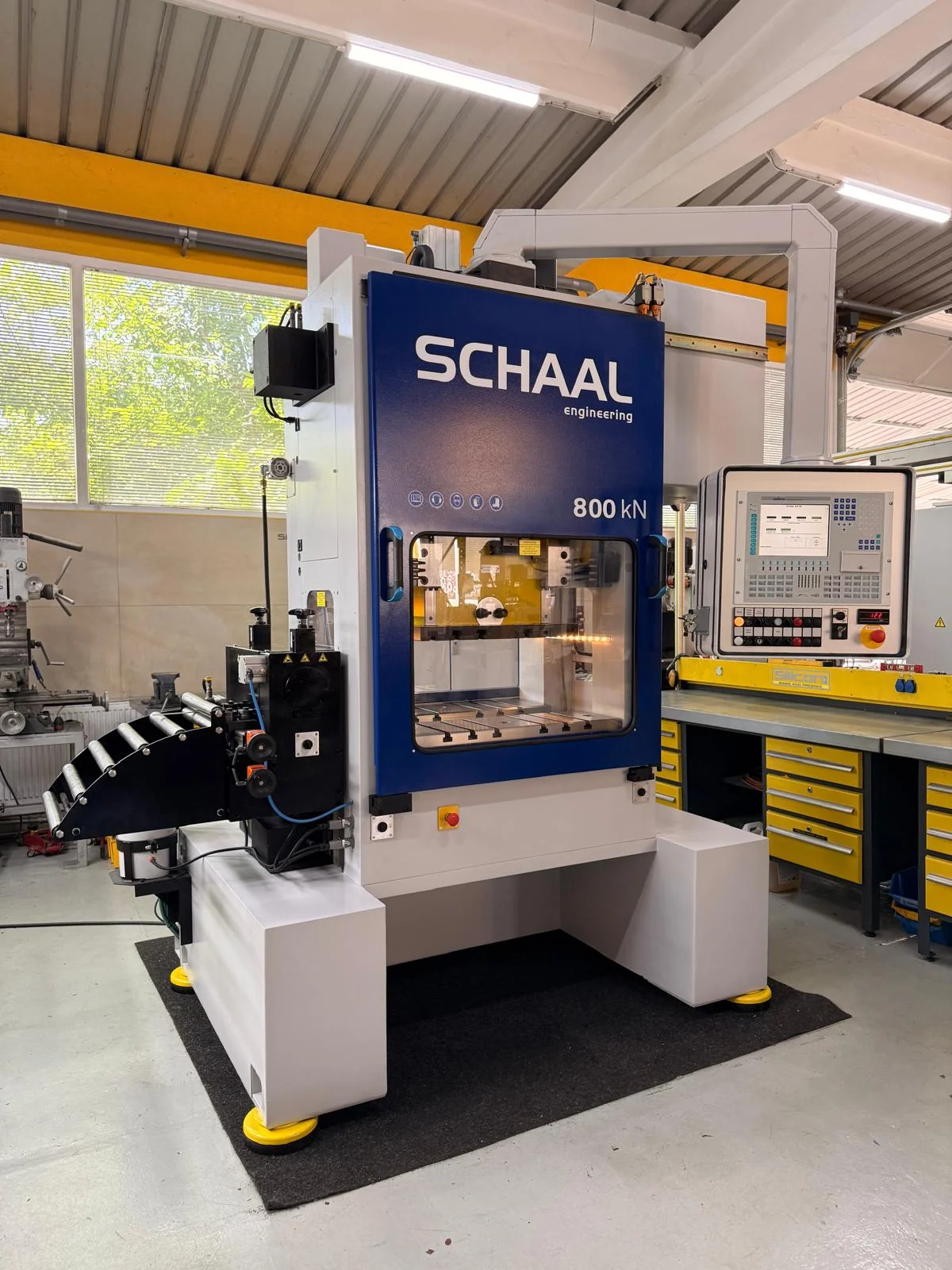

    This SCHAAL SEP 80 (Machine No. 00-1564, built 2000 at A. Schaal GmbH & Co., Salach/Württemberg, Germany) is a precision eccentric press engineered for demanding high-volume stamping work. Built around a vibration-damped O-form double-column cast frame, it delivers the rigidity and dimensional stability required for fine-blanking, progressive die stamping, and high-tolerance production runs where part quality cannot drift across the shift. This press comes equipped with the matched SCHAAL SWV 3E roll feeder, so it's ready to run as a complete coil-fed stamping line out of the gate: Feed length: 0–9,999.9 mm (fully programmable) Strip width: up to 320 mm Strip thickness: 0–4 mm

    Call Us

    Technical Specifications

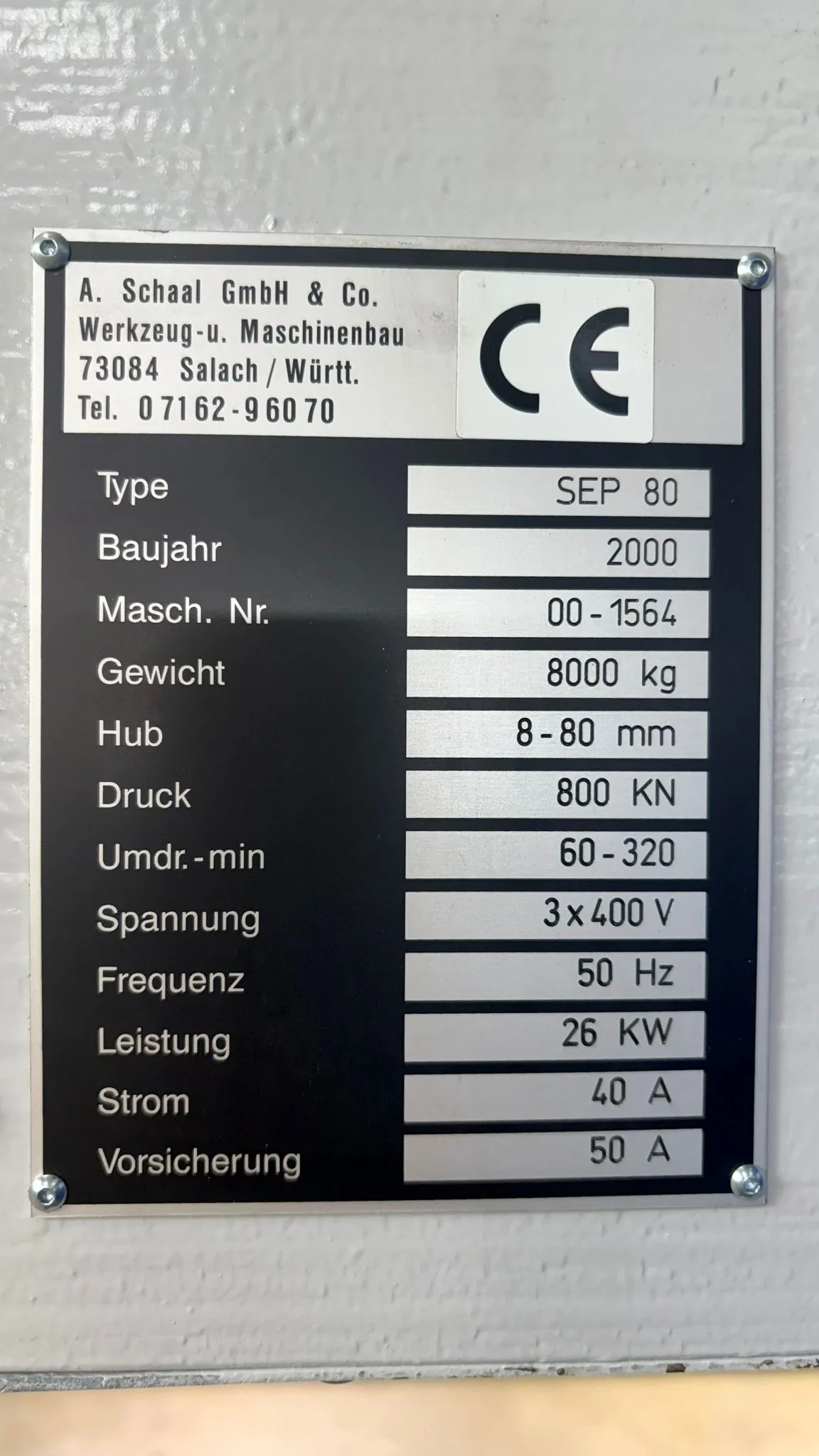

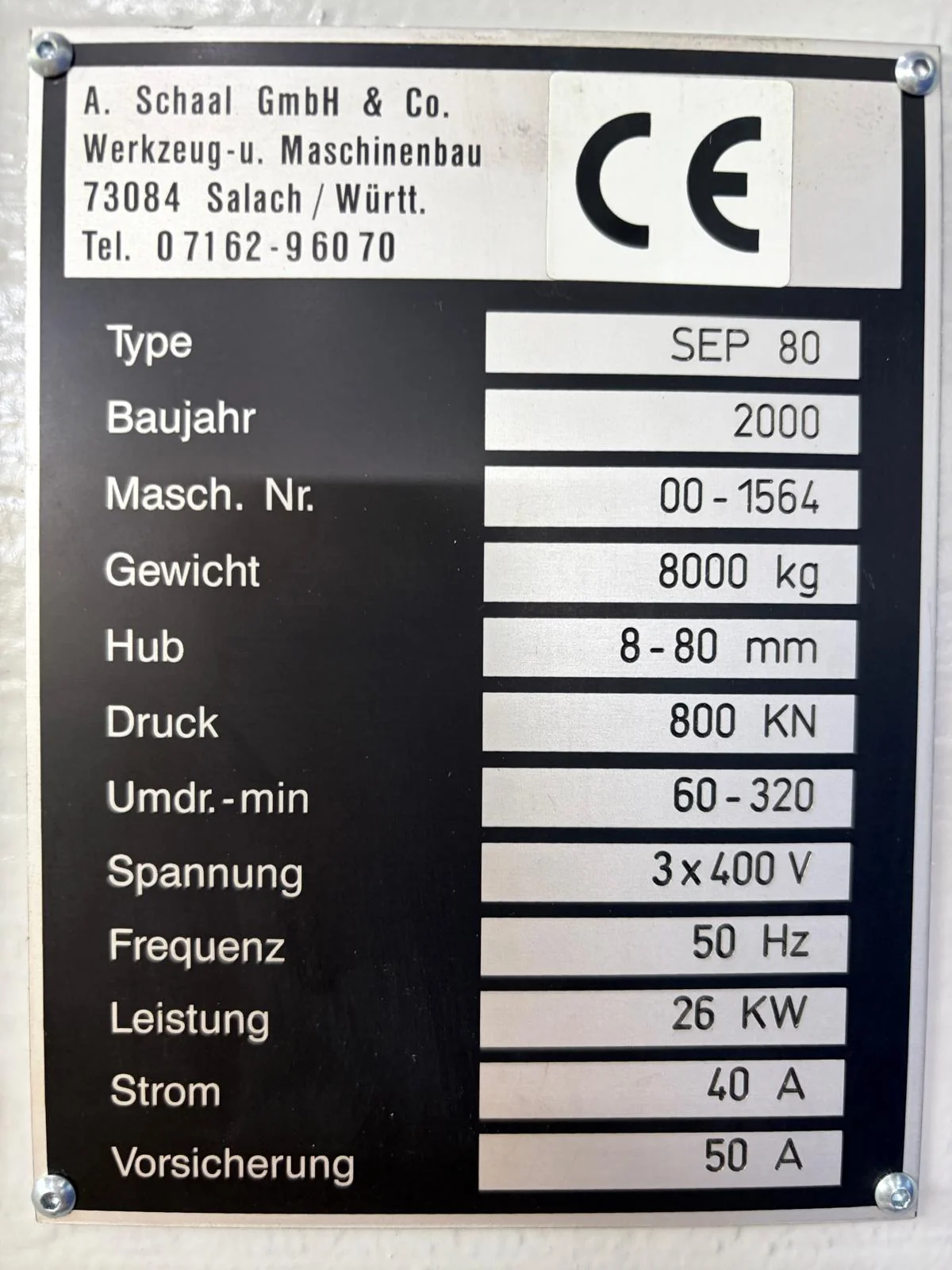

    ManufacturerA. Schaal GmbH & Co. Werkzeug- u. Maschinenbau
    TypeSEP 80
    Year of manufacture2000
    Machine number00-1564
    CE markingYes
    Press force800 kN
    Speed:60 - 320 SPM
    Adjustable stroke8–80 mm
    Distance table-to-ram (max, ram down, with bolster)310 / 355 mm
    Ram adjustment80 mm
    Ram dimensions500 × 400 mm
    Ram boreØ 50 × 90 mm
    Ram keyway30 H7 mm

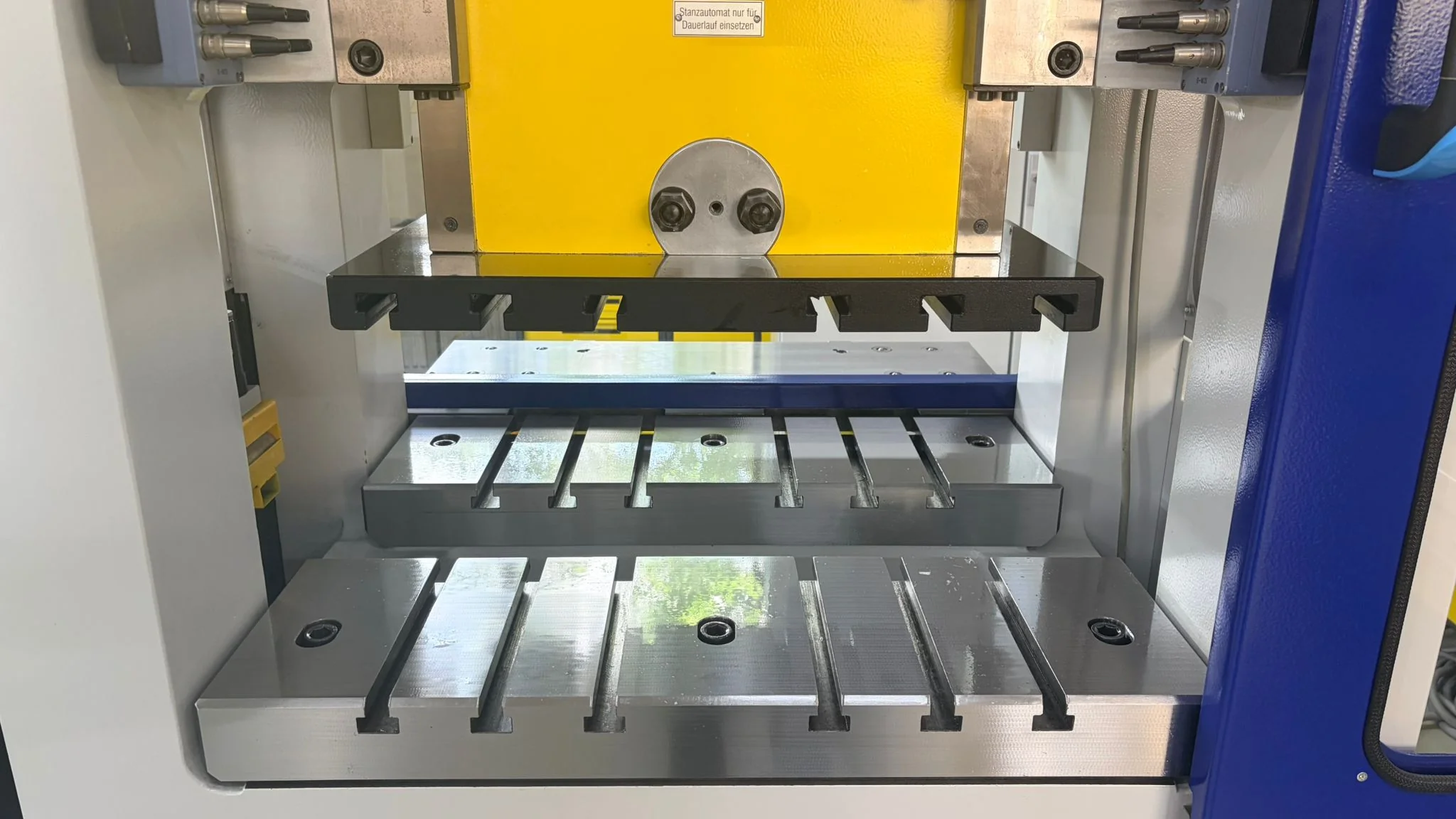

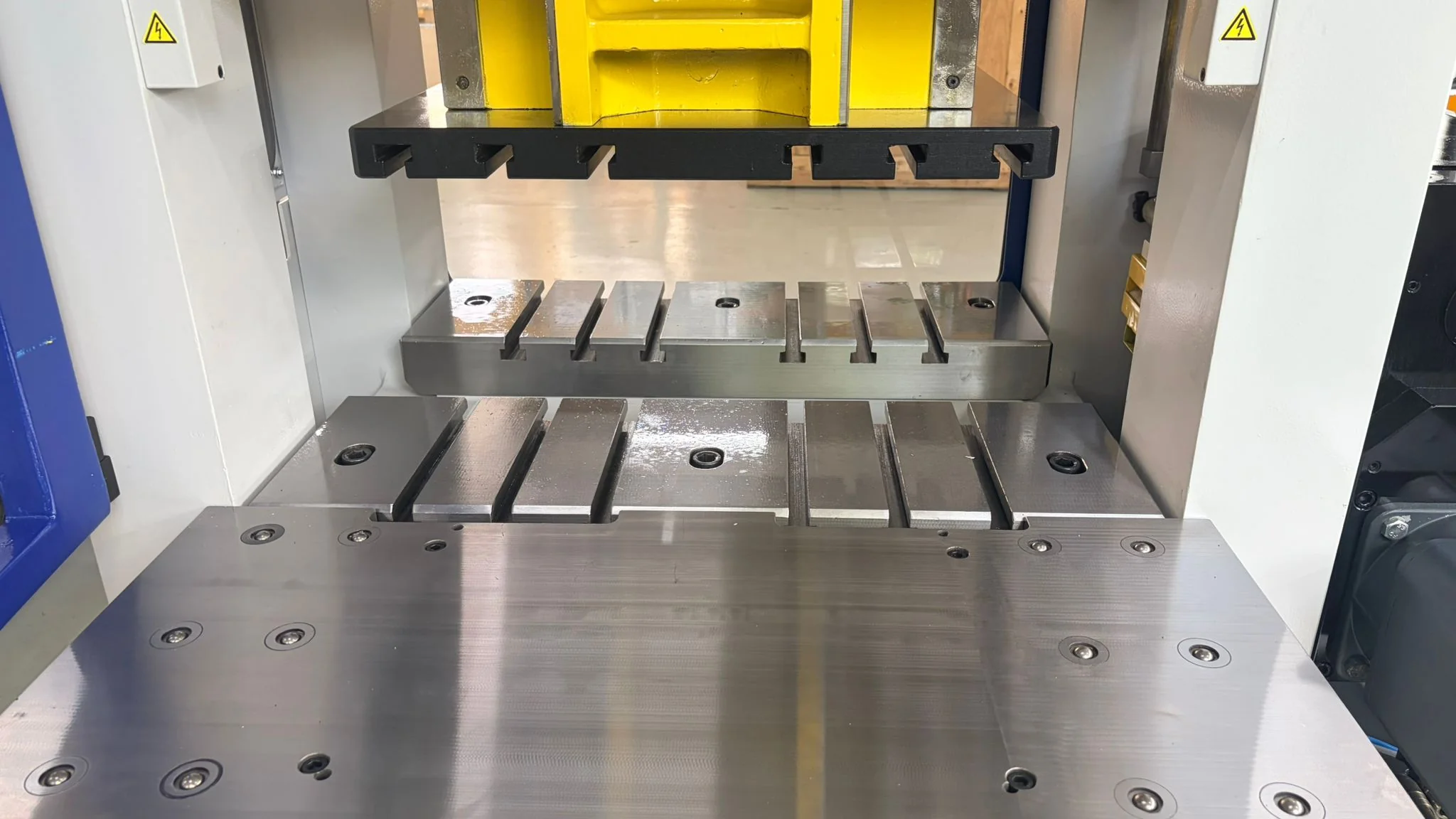

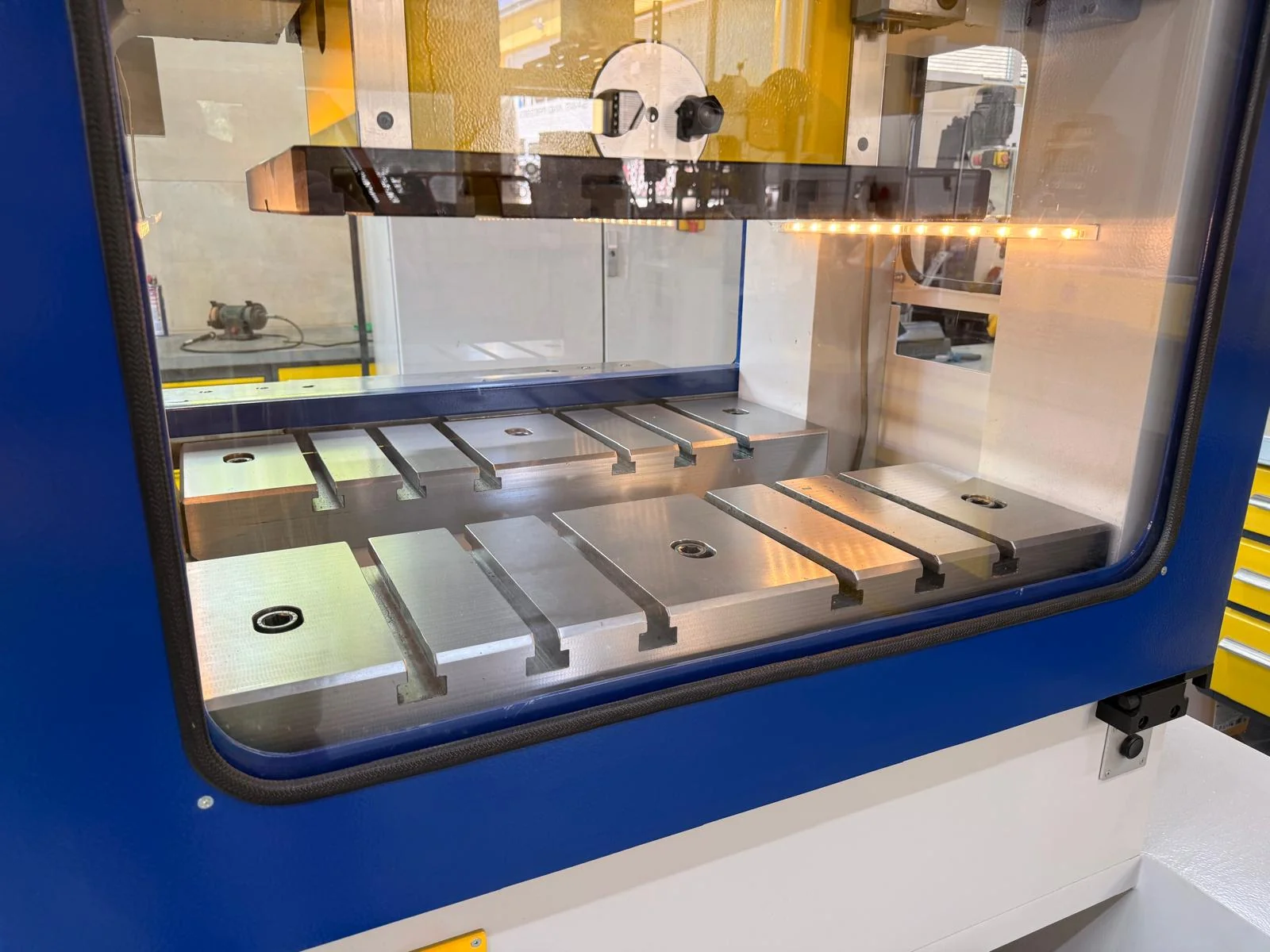

    Table size830 × 700 mm
    Bolster plate thickness80 mm
    Through-hole in table500 × 200 mm
    Strip pass line over table (with bolster)120 mm ± 40 mm
    Total installed power26 kW
    Supply voltage3 × 400 V, 50 Hz
    Rated current40 A
    Pre-fuse50 A
    Weight8,000 kg

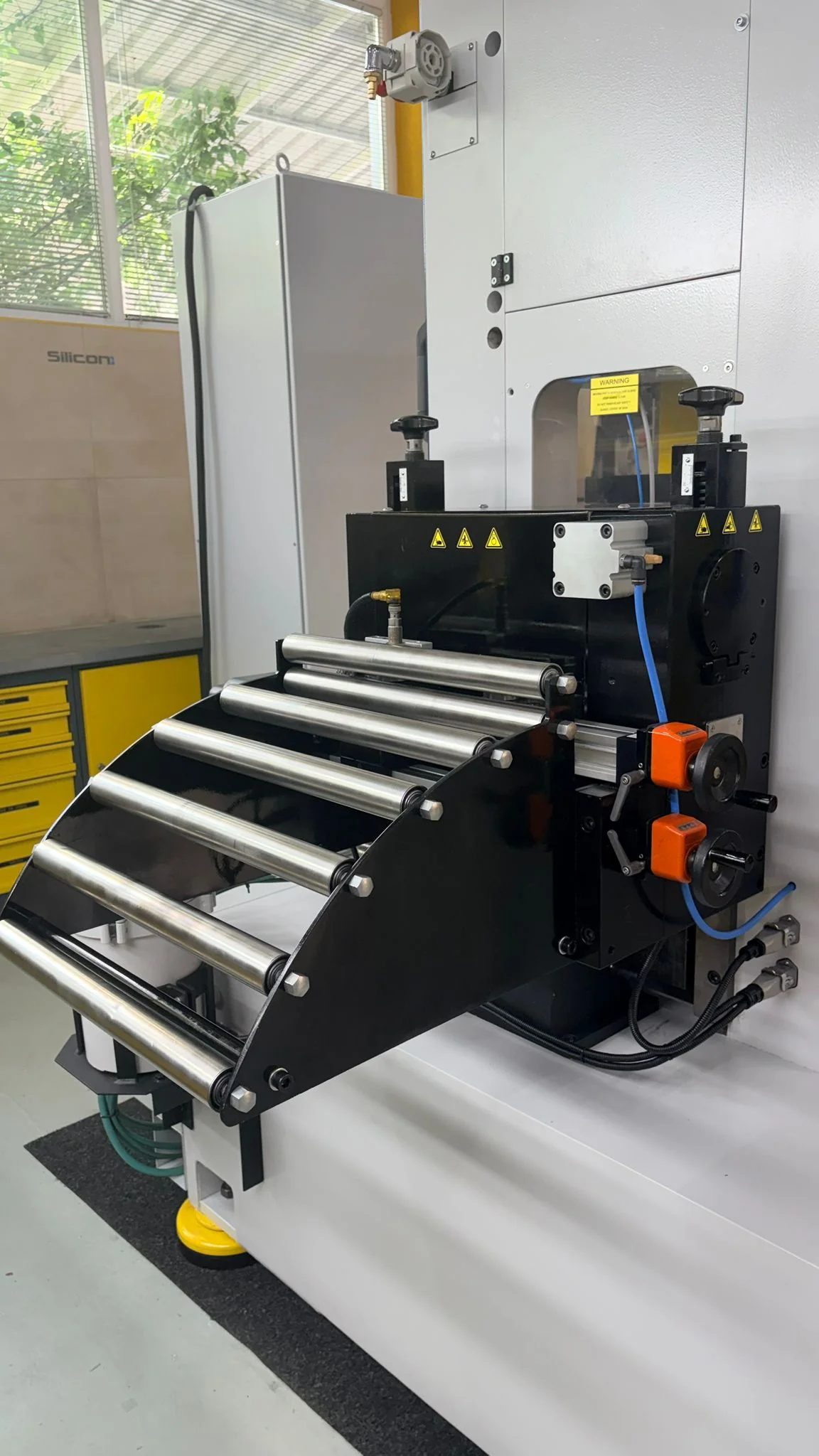

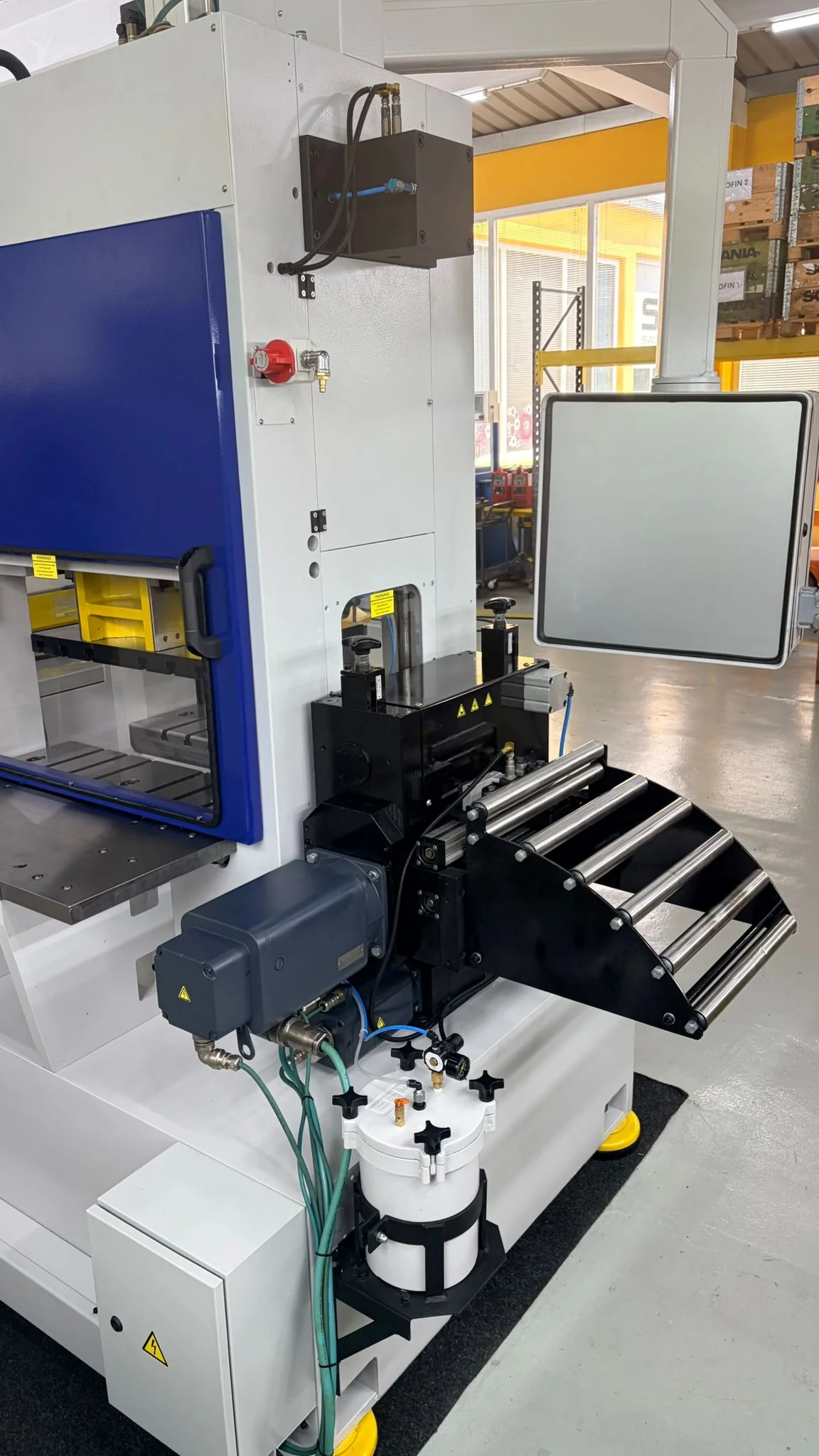

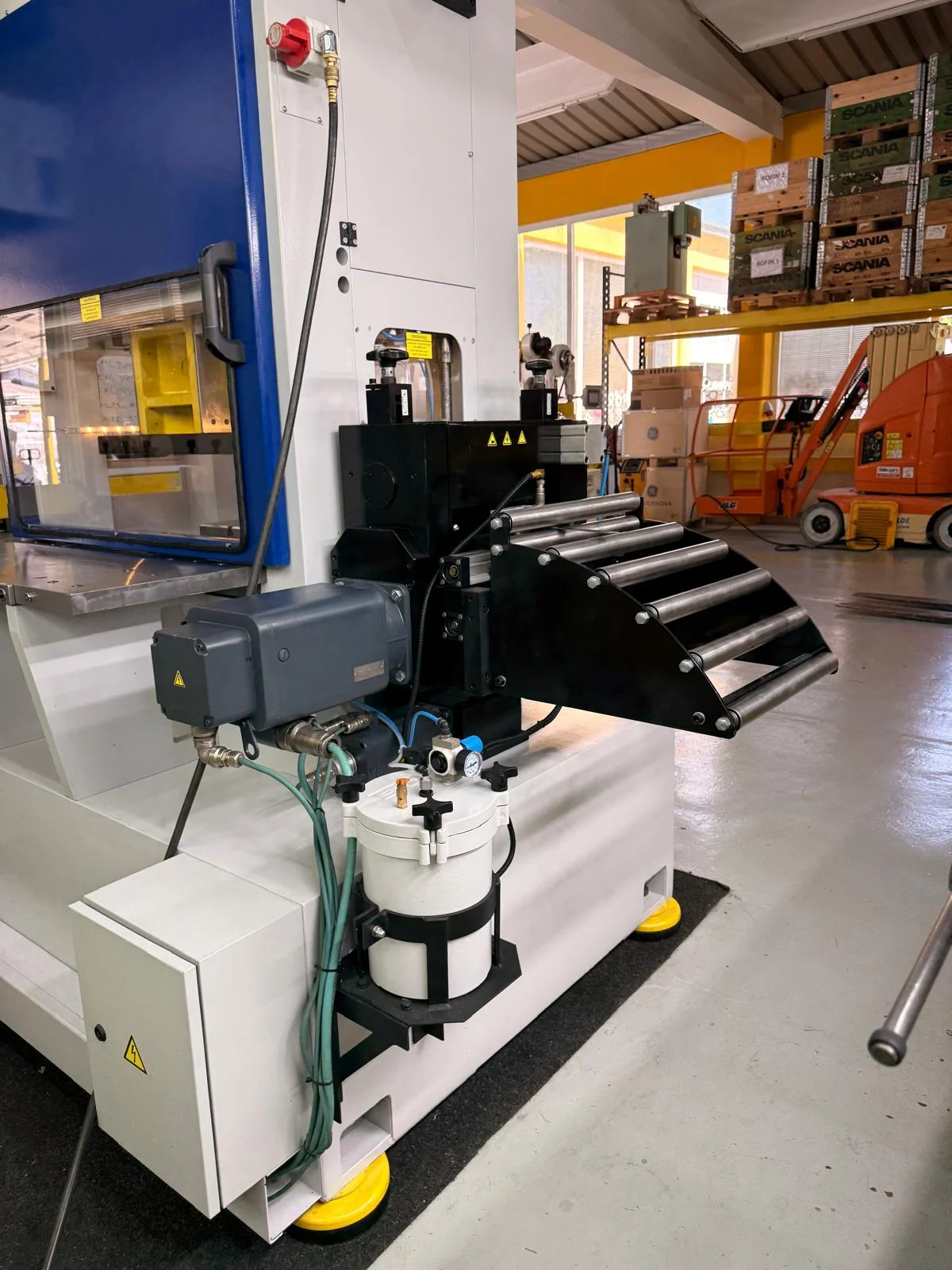

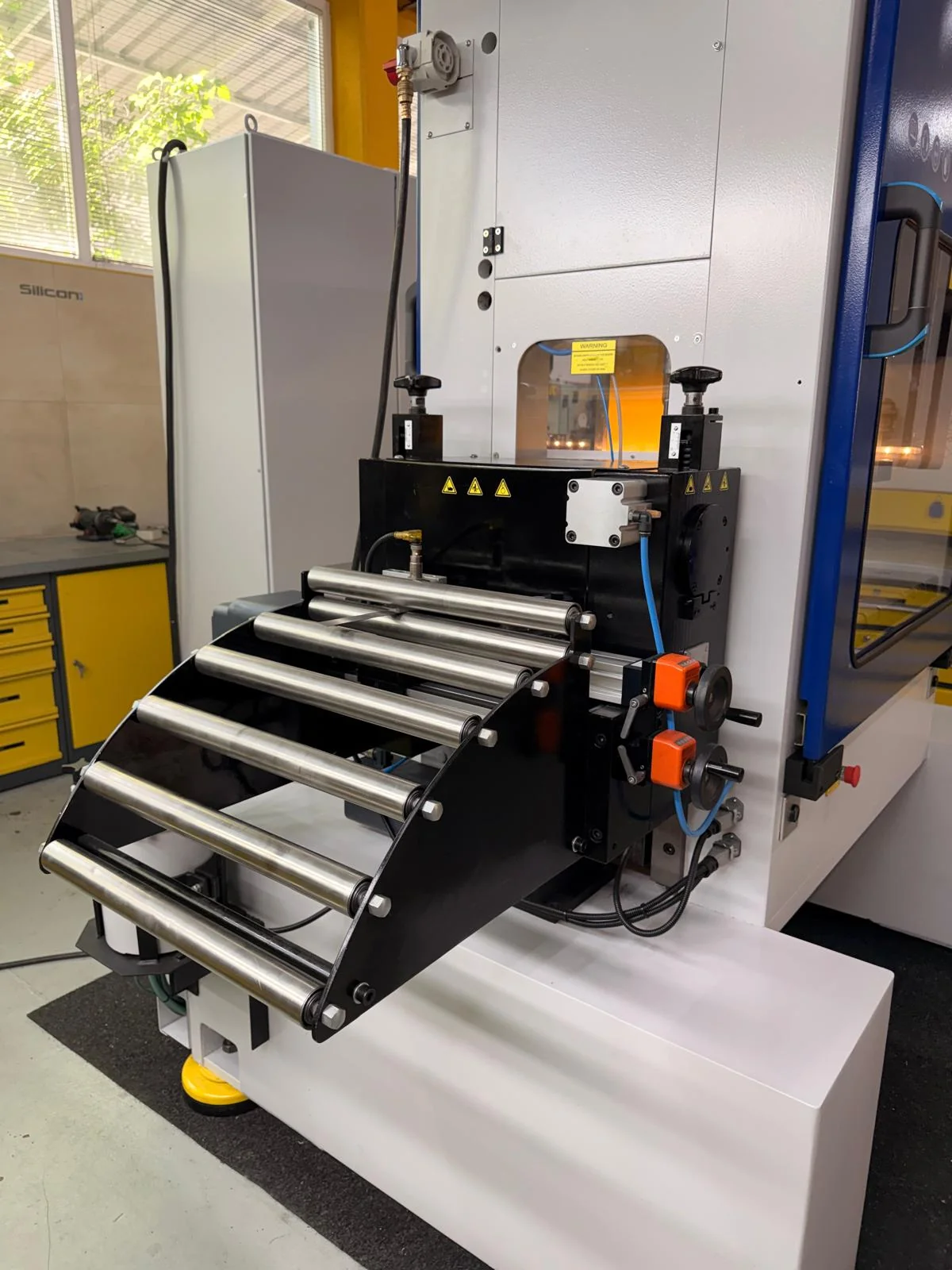

    FeederSCHAAL SWV 3E roll feeder
    Feed length:0–9,999.9 mm (fully programmable)
    Strip width: up to 320 mmup to 320 mm
    Strip thickness:0–4 mm
